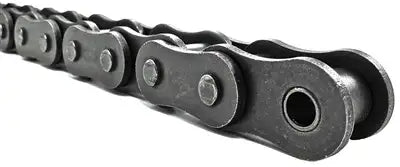

Premium #25H Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
#25H heavy roller chain is designed for more demanding light-duty industrial applications. The "H" in the part number designates that this chain has thicker side-plates (heavy) than that of a standard 25 chain. This design increases strength and horsepower ratings for the chain while still maintaining a compact design. What separates our 25H chain from others is; heat-treated components, shot peen components, factory pre-loading, and premium lubrication. Heat-treating the individual carbon steel components increases the surface hardness of the component as well as overall strength, improving wear life and shock load capability. When these same components are then shot-peened the fatigue resistance dramatically increases, further elaborating on the chain wear characteristics. The specific factory pre-loading process diminishes initial and long-term chain stretch, almost eliminating the hassle of constant tension adjustments. Once complete and all of the components are assembled the chain is then hot dipped into high-grade lubrication to guarantee the 25H chain gives you the best performance right out of the box! Standardly supplied as a 480-link strand (10ft) including one master link, a 25H chain is also available in 100ft reels, 250ft reels, and 500ft reels upon request. For additional information or to get a quote, please contact our customer support team and we will be happy to assist you!
25H Chain Dimensions
- Part #: 25H
- Pitch (P): 0.250"
- Bushing Dia (D): 0.130"
- Width Between Inner Plates (e): 0.125"
- Pin Diameter (d): 0.091"
- Pin Length/ Chain Width (W): 0.354"
- Pin Length/ Connecting Link Width (O): 0.453"
- Inner Plate Height (H): 0.24"
- Minimum Breaking Load: 1,080 LBS (490 Kgs)
- Weight: 0.12 LBS/ FT
