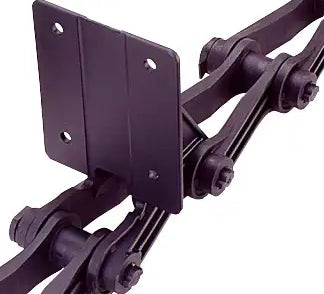

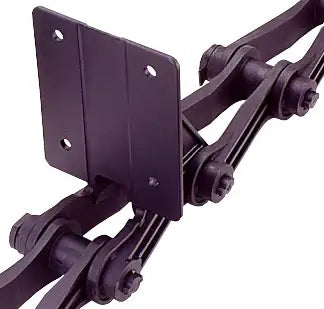

NCS 720S F226 Attachment

Name: NCS 720S F226 Attachment
Brand: USA ROLLER CHAIN
SKU: NCS720S-F226-ATTACHMENT
Availability: InStock

Note: Se habla espanol

SKU: NCS720S-F226-ATTACHMENT

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

NCS 720S F226 Attachment Description/Features

NCS 720S F226 Attachment Specifications

NCS 720S F226 Attachment is manufactured to the same standards as NCS 720S chain and is a non metallic and high strength attachment. We can supply them as individual attachment links or already assembled onto NCS 720S chain in any configuration needed. On top of the chain and attachments we also offer a full line of flights, sprockets, wear materials, bearings, shafting, skimmers, and drives. To get a quote on NCS 720S F226 attachments or NCS 720S chain with attachments assembled onto it simply give us a call or send an email and one of our customer service representatives will be happy to assist you.

Dimensions:

Attachment Size: NCS 720S F226
Pitch: 6.00"
Bolt Diameter (D): 0.50"
Hole Diameter (D): 0.56"
Dimension (J): 6.14"
Dimension (K): 3.00"
Dimension (M): 3.75"
Dimension (M1): 2.62"
Dimension (T): 0.25"
Dimension (U): 2.38"
Dimension (W): 5.50"
