• MSR6238 A2 Attachment
1 1

MSR6238 A2 Attachment

MSR6238 A2 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: MSR6238-A2-ATTACHMENT
Shipping calculated at checkout.
View full details
Description
Specification
This MSR6238 A2 attachment is a premium high-strength attachment that is manufactured specifically for MSR6238 chain and can be assembled in any configuration needed. To get a quote for MSR6238 chain with A2 attachments or for more information please contact us and we will be happy to assist you!

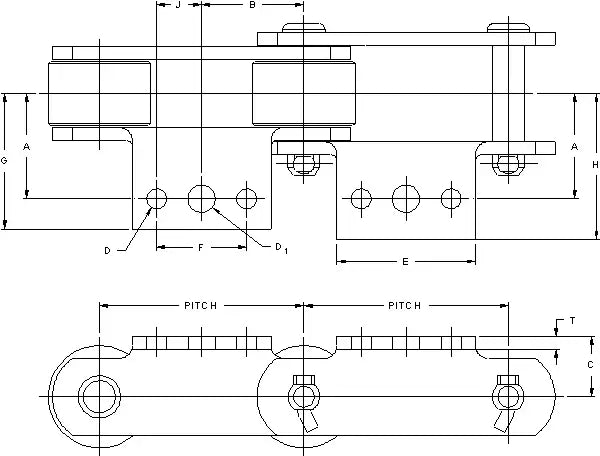

Dimensions:
MSR6238 A2 Attachment
  • Attachment #: MSR6238-A2
  • Pitch: 6.00"
  • Dimension (A): 2.12"
  • Dimension (B): 1.69"
  • Dimension (C): 1.62"
  • Bolt Diameter (D): 0.50"
  • Hole Diameter (D): 0.56"
  • Dimension (E): 5.38"
  • Dimension (F): 2.62"
  • Dimension (G): 2.94"
  • Dimension (H): 2.84"
  • Dimension (T): 0.38"
  • Weight: 12.0 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Attachment
  • Can Be Assembled In Any Configuration Needed
  • Heat-Treated Or Hardened Construction
  • Extremely Durable
Featured image
  • Attachment #: MSR6238-A2
  • Pitch: 6.00"
  • Dimension (A): 2.12"
  • Dimension (B): 1.69"
  • Dimension (C): 1.62"
  • Bolt Diameter (D): 0.50"
  • Hole Diameter (D): 0.56"
  • Dimension (E): 5.38"
  • Dimension (F): 2.62"
  • Dimension (G): 2.94"
  • Dimension (H): 2.84"
  • Dimension (T): 0.38"
  • Weight: 12.0 LBS/ FT
