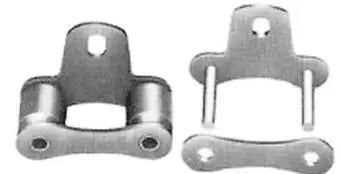

MR42 SA-1 Attachment

Name: MR42 SA-1 Attachment
Brand: USA ROLLER CHAIN
SKU: MR42-SA-1-ATTACHMENT
Availability: InStock

SKU: MR42-SA-1-ATTACHMENT

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

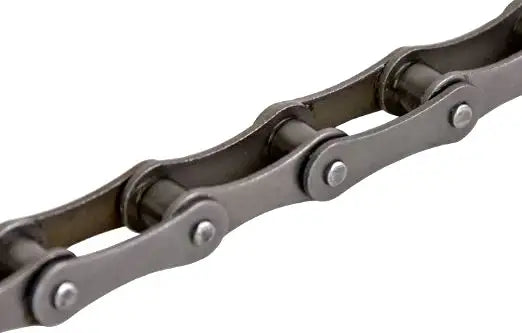

MR42 Chain (Agricultural Roller Chain)

MR42 SA-1 Attachment Description/Features

MR42 SA-1 Attachment Specifications

We can supply MR42 roller chain with SA-1 attachments in any configuration needed to meet your exact needs. This SA-1 attachment is manufactured using precision hardened components to ensure durability, working life, and strength.

Dimensions:

Attachment #: MR42 SA-1
Pin (D): 0.275"
Dimension (N): 0.929"
Dimension (S): 0.551"
Dimension (Xs): 1.346"
Dimension (C1): 0.929"
Dimension (O1): 0.398"
Dimension (2C): 2.126"
Dimension (O2): 0.272"
Dimension (2X): 2.953"
