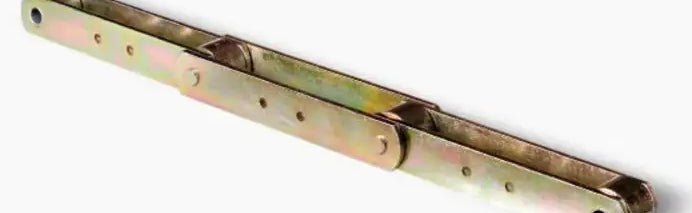

M900C500 Chain

M900C500 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: M900C500-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
M900-500 A2 Attachment
M900-500 A2 Attachment
Login
View full details
Description
Specification
M900C500 chain is a metric conveyor chain that is manufactured to ISO 1977 and DIN 8167 specifications. M series chains are some of the most universally used chains in the world, therefore this series caters for most mechanical handling requirements. This chain is supplied with an C style roller but additional styles and roller types are available upon request. A few things that sets our M900C500 chain apart from others is the heat treated components, precision manufacturing, and proven long term durability.

M900C500 Chain Dimensions


M900C500 Chain
  • Chain Size: M900C500
  • Pitch (P): 500mm
  • Average Weight: 41.6KG/M
  • Roller Style: C
  • Roller Diameter: 170mm
  • Pin Diameter (D6): 44mm
  • Overall Width (F1): 153mm
  • Dimension (F2): 83mm
  • Bushing Diameter (D45): 60mm
  • Dimension Between Sidebars (L): 78mm
  • Sidebar Thickness (S): 16mm
  • Sidebar Height (H): 120mm


Although this chain is comparable to DIN 8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M900C500 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

  • Chain Size: M900C500
  • Pitch (P): 500mm
  • Average Weight: 41.6KG/M
  • Roller Style: C
  • Roller Diameter: 170mm
  • Pin Diameter (D6): 44mm
  • Overall Width (F1): 153mm
  • Dimension (F2): 83mm
  • Bushing Diameter (D45): 60mm
  • Dimension Between Sidebars (L): 78mm
  • Sidebar Thickness (S): 16mm
  • Sidebar Height (H): 120mm
