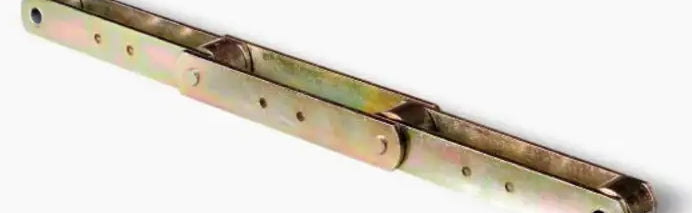

M80B80 Chain
Note:
Custom Cut to Length Chain Also Available
SKU: M80B80-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
M80B80 Chain Features
M80B80 Chain Specifications
M80B80 chain is a metric conveyor chain that is manufactured to ISO 1977 and DIN 8167 specifications. M series chains are some of the most universally used chains in the world, therefore this series caters for most mechanical handling requirements. This chain is supplied with an B style roller but additional styles and roller types are available upon request. A few things that sets our M80B80 chain apart from others is the heat treated components, precision manufacturing, and proven long term durability.
Although this chain is comparable to DIN 8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M80B80 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
M80B80 Chain Dimensions
- Chain Size: M80B80
- Pitch (P): 80mm
- Average Weight: 4.51KG/M
- Roller Style: B
- Roller Diameter: 25mm
- Pin Diameter (D6): 12mm
- Overall Width (F1): 54.5mm
- Dimension (F2): 31mm
- Bushing Diameter (D45): 18mm
- Dimension Between Sidebars (L): 28mm
- Sidebar Thickness (S): 5mm
- Sidebar Height (H): 35mm
Although this chain is comparable to DIN 8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M80B80 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.
Email:
- Chain Size: M80B80
- Pitch (P): 80mm
- Average Weight: 4.51KG/M
- Roller Style: B
- Roller Diameter: 25mm
- Pin Diameter (D6): 12mm
- Overall Width (F1): 54.5mm
- Dimension (F2): 31mm
- Bushing Diameter (D45): 18mm
- Dimension Between Sidebars (L): 28mm
- Sidebar Thickness (S): 5mm
- Sidebar Height (H): 35mm
