M3075H/D3X4 Chain Description/Features
M3075H/D3X4 Chain Specifications
M3075H/D3X4 Chain is a high strength, high quality, and high performance wash box chain. This wash box chain is an extremely reliable mining chain that is made to withstand the harsh and demanding environment that it is exposed to underground. What sets this chain apart is the use of alloy grade steel, special high-hardness heat treating, and, heavy press-fit construction. Using alloy grade steel greatly increases overall durability and strength, while the special high-hardness drastically improves the fatigue of the chain thus producing a wash box chain that is built to last. We also offer a complete line of M3075H/D3X4 sprockets at a competitive price. For more information or to get a quote on wash box chain please contact us and we will be happy to assist you.

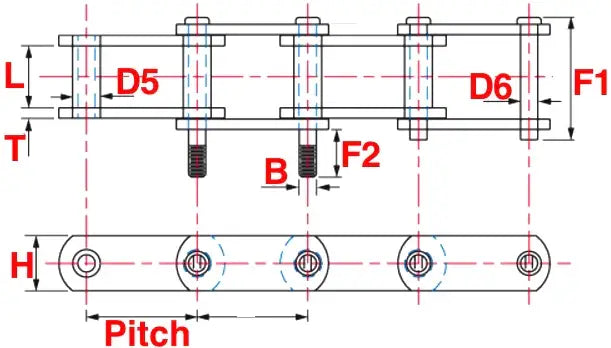

Dimensions:
M3075H/D3X4 Chain
  • Chain Size: M3075H/D3X4
  • Pitch: 3.075"
  • Pin Spacing: Every 4th
  • Overall Width (F1): 4.00"
  • Inside Width (L): 1.31"
  • Pin Diameter (D6): 0.75"
  • Pin Material: ACHCP
  • Bushing Diameter (D5): 1.25
  • Bushing Material: CCH
  • Sidebar Thickness (T): 0.38"
  • Sidebar Height (H): 1.75"
  • Sidebar Material: CHT
  • Dimension (B): 0.75"
  • Dimension (F2): 1.25"
  • Weight: 10.2 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: M3075H/D3X4
  • Pitch: 3.075"
  • Pin Spacing: Every 4th
  • Overall Width (F1): 4.00"
  • Inside Width (L): 1.31"
  • Pin Diameter (D6): 0.75"
  • Pin Material: ACHCP
  • Bushing Diameter (D5): 1.25
  • Bushing Material: CCH
  • Sidebar Thickness (T): 0.38"
  • Sidebar Height (H): 1.75"
  • Sidebar Material: CHT
  • Dimension (B): 0.75"
  • Dimension (F2): 1.25"
  • Weight: 10.2 LBS/ FT
