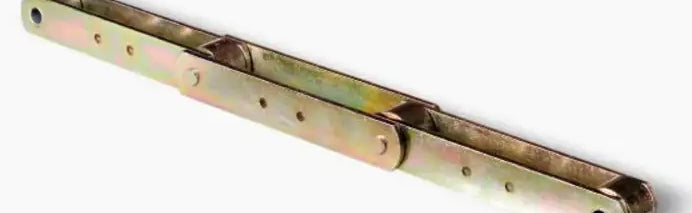

M112C200 Chain
SKU: M112C200-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Buy it With:
M112C200 Chain Description/Features
M112C200 Chain Specifications
M112C200 chain is a metric conveyor chain that is manufactured to ISO 1977 and DIN 8167 specifications. M series chains are some of the most universally used chains in the world, therefore this series caters for most mechanical handling requirements. This chain is supplied with an C style roller but additional styles and roller types are available upon request. A few things that sets our M112C200 chain apart from others is the heat treated components, precision manufacturing, and proven long term durability.
Although this chain is comparable to DIN 8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M112C200 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
M112C200 Chain Dimensions
- Chain Size: M112C200
- Pitch (P): 200mm
- Average Weight: 4.63KG/M
- Roller Style: C
- Roller Diameter: 60mm
- Pin Diameter (D6): 15mm
- Overall Width (F1): 63mm
- Dimension (F2): 36mm
- Bushing Diameter (D45): 21mm
- Dimension Between Sidebars (L): 32mm
- Sidebar Thickness (S): 6mm
- Sidebar Height (H): 40mm
Although this chain is comparable to DIN 8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M112C200 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.
Email:
- Chain Size: M112C200
- Pitch (P): 200mm
- Average Weight: 4.63KG/M
- Roller Style: C
- Roller Diameter: 60mm
- Pin Diameter (D6): 15mm
- Overall Width (F1): 63mm
- Dimension (F2): 36mm
- Bushing Diameter (D45): 21mm
- Dimension Between Sidebars (L): 32mm
- Sidebar Thickness (S): 6mm
- Sidebar Height (H): 40mm
