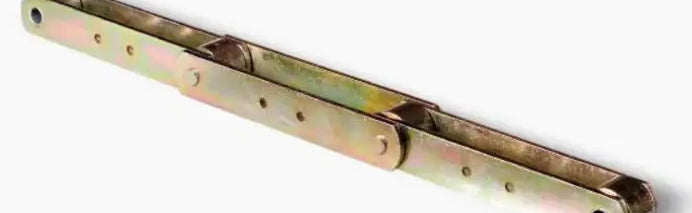

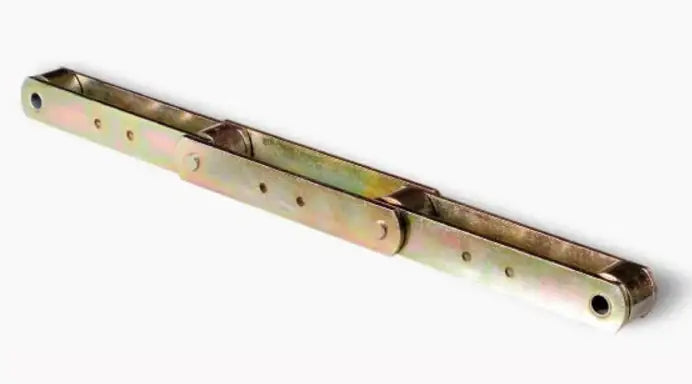

M112A200 Chain
Buy it With:
M112A200 chain is a metric conveyor chain that is manufactured to ISO 1977 and DIN8167 specifications. M series chains are some of the most universally used chains in the world, therefore this series caters for most mechanical handling requirements. This chain is supplied with an A style bushing and no roller, additional styles are available upon request. A few things that sets our M112A200 chain apart from others is the heat treated components, precision manufacturing, and proven long term durability.
M112A200 Chain Dimensions
- Chain Size: M112A200
- Pitch (P): 200mm
- Average Weight: 4.63KG/M
- Roller Style: A
- Roller Diameter: 30mm
- Pin Diameter (D6): 15mm
- Overall Width (F1): 63mm
- Dimension (F2): 36mm
- Bushing Diameter (D45): 21mm
- Dimension Between Sidebars (L): 32mm
- Sidebar Thickness (S): 6mm
- Sidebar Height (H): 40mm
Although this chain is comparable to DIN8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M112A200 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.
Email:
- Chain Size: M112A200
- Pitch (P): 200mm
- Average Weight: 4.63KG/M
- Roller Style: A
- Roller Diameter: 21mm
- Pin Diameter (D6): 15mm
- Overall Width (F1): 63mm
- Dimension (F2): 36mm
- Bushing Diameter (D45): 21mm
- Dimension Between Sidebars (L): 32mm
- Sidebar Thickness (S): 6mm
- Sidebar Height (H): 40mm
