Specialty Chain > ANSI Leaf Chains > LH Series Leaf Chain

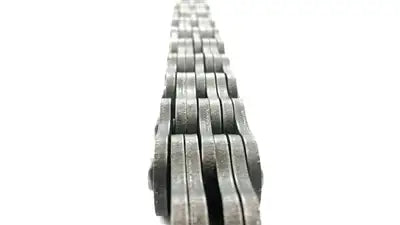

LH0834 Leaf Chain | 3X4 Chain 12.70mm Pitch - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$114.99
SKU: LH0834-LEAF-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
LH0834 Leaf Chain | 3X4 Chain 12.70mm Pitch - 10ft Box Features
LH0834 Leaf Chain | 3X4 Chain 12.70mm Pitch - 10ft Box Specifications
LH0834 leaf chain is manufactured to ANSI and ISO dimensional standards and is a 3X4 lacing leaf chain. LH series leaf chains are heavy-duty and designed for higher load requirements than LL or AL series chains. What separates our LH0834 chain from others is our use of high-grade carbon and alloy steel components, specific heat treatments, precision tolerances, and factory pre-loading. The combination creates an LH0834 leaf chain capable of exceptional performance and durability! LH0823 chain provides a fantastic cost-to-breaking strength ratio due to the inclusion of extra plates. Additionally, our LH0834 leaf chain directly interchanges with other brands and manufacturers. For additional information or to get a quote on the LH0834 chain, contact our customer support team, and we will be happy to assist you!
LH0834 Chain Dimensions
- Chain Size: LH0834
- Lacing: 3X4
- Pitch (P): 12.70mm
- Pin Diameter (Dp): 5.09mm
- Plate Height (Hi): 11.65mm
- Plate Thickness (S): 2.04mm
- Pin Length (A1): 16.40mm
- Tensile Strength: 39.7 kN
- Weight: 1.05 Kg/m
- Chain Size: LH0834
- Lacing: 3X4
- Pitch (P): 12.70mm
- Pin Diameter (Dp): 5.09mm
- Plate Height (Hi): 11.65mm
- Plate Thickness (S): 2.04mm
- Pin Length (A1): 16.40mm
- Tensile Strength: 39.7 kN
- Weight: 1.05 Kg/m
