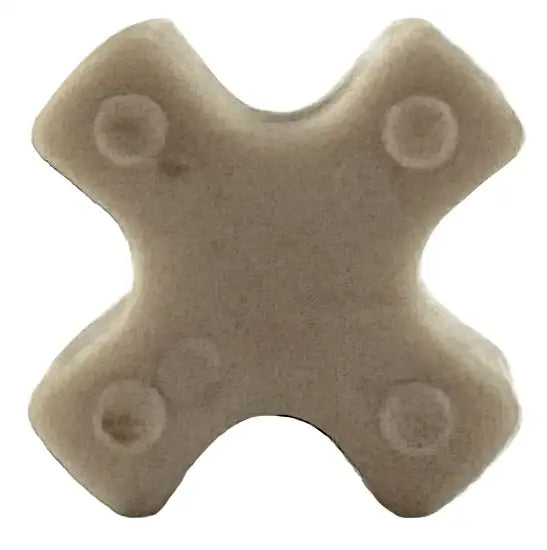

L099H Insert | L099H Coupling Insert - L099H Spider (Hytrel)

L099H insert is a Hytrel jaw-coupling insert with fair flexibility and hard torsional stiffness. L099H inserts are also called L099H spiders and are used within L099 coupling hubs. The insert is the critical component allowing flexibility and is placed between the jaw hubs, preventing metal-on-metal contact. More specifically, the L099H coupling insert is made from high-quality Hytrel, which is a thermoplastic polyester elastomer material that is white in color. The material can operate in temperatures ranging from -60F to +250F and has excellent oil and chemical resistance; for more information on jaw coupling inserts, visit our main Jaw Coupling page or contact our customer support team.

L099H Insert Dimensions

• Part #: L099H
• Material: Hytrel
• Color: White
• Weight: 0.06 LBS
