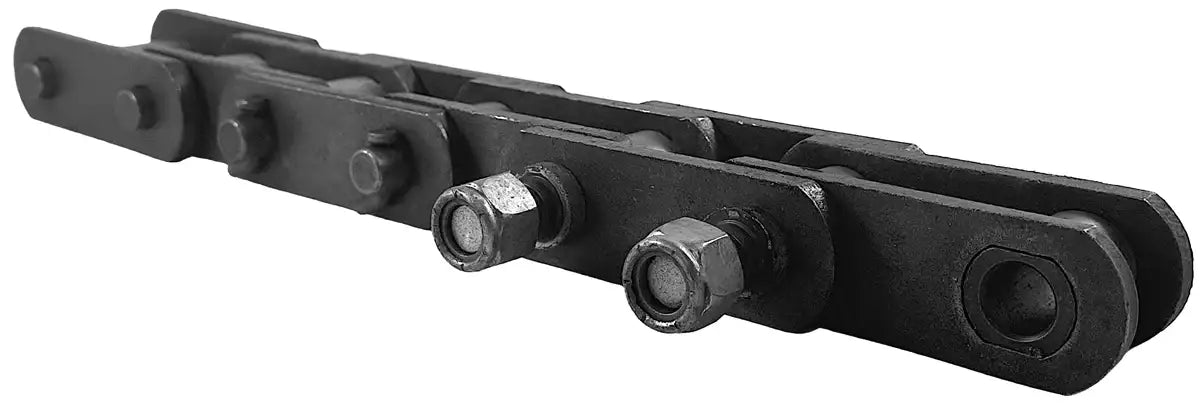

JKM3075/D3X6 Wash Box Chain | JKM3075/D3X6 Chain
Note:
Custom Cut to Length Chain Also Available
SKU: JKM3075D3X6-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
JKM3075/D3X6 Wash Box Chain | JKM3075/D3X6 Chain Features
JKM3075/D3X6 Wash Box Chain | JKM3075/D3X6 Chain Specifications
JKM3075/D3X6 wash box chain is utilized in many mining operations, especially coal mining. Our JKM3075/D3X6 chain is made from high-grade steel alloys, features precision components, and implements specific heat treatments for improved wear life and performance. Wash box chains are used in wet coal washers; the highly abrasive environment is demanding and considered one of the harshest chain applications on earth. Our JKM3075/D3X6 chain has been designed and manufactured for the optimal lifespan in wash box applications; additionally, our chain interchanges with other manufacturers! For more information or to get a quote on our JKM3075/D3X6 wash box chain or sprockets, contact our customer support team, and we will be happy to assist you!
JKM3075/D3X6 Chain Dimensions
- Chain Size: JKM3075/D3X6
- Pitch (P): 3.075"
- Extended Pin Spacing: Every 6TH
- Dimension (W): 4.00"
- Dimension (L): 1.31"
- Dimension (N): 0.75"
- Pin Material: Alloy, Case-Hardened
- Dimension (D): 1.25"
- Bushing Material: Carbon, Case-Hardened
- Dimension (T): 0.38"
- Dimension (H): 1.75"
- Sidebar Material: Carbon, Heat-Treated
- Dimension (K): 0.75"
- Dimension (F): 1.25"
- Weight: 9.8 LBS/ FT
- Chain Size: JKM3075/D3X6
- Pitch (P): 3.075"
- Extended Pin Spacing: Every 6TH
- Dimension (W): 4.00"
- Dimension (L): 1.31"
- Dimension (N): 0.75"
- Pin Material: Alloy, Case-Hardened
- Dimension (D): 1.25"
- Bushing Material: Carbon, Case-Hardened
- Dimension (T): 0.38"
- Dimension (H): 1.75"
- Sidebar Material: Carbon, Heat-Treated
- Dimension (K): 0.75"
- Dimension (F): 1.25"
- Weight: 9.8 LBS/ FT
