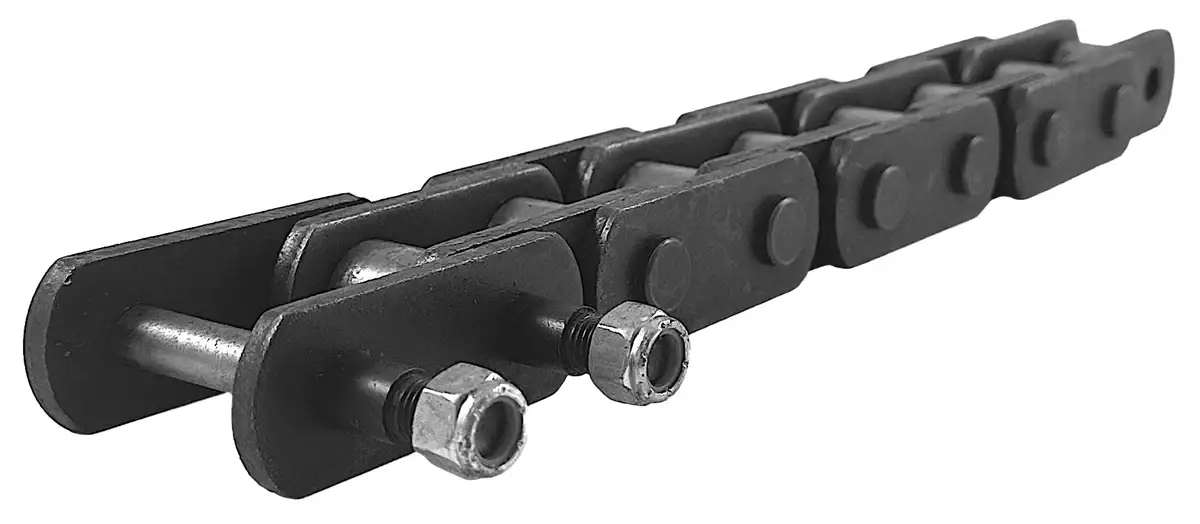

JKB3075/D3X4 Feeder Breaker Chain | JKB3075D3X4 Chain - Threaded

JKB3075/D3X4 feeder breaker chain is used in the mining industry's stationary, mobile, and crawler-mounted feeder breakers. Our JKB3075D3X4 chain is manufactured from high-grade steel with specific forming practices to ensure high precision and heat treatments for each component to improve wear life, performance, and strength! The JKB3075D3X4 chain also uses unique threaded pins to fasten cross sections or add components onto the chain. JKB3075/D3X4 mining chain is typically used in parallel sets with cross sections/ slats connecting the two chain strands; these slats carry mined material. Additionally, we supply the JKB3075/D3X4 chain with options like; anti-corrosive coating or plating, sealed, self-lubricating, or with an extra side plate placed at the link plate with the extended pins. The extended pin spacing can be specified at the time of order. Also, our JKB3075D3X4 chain directly interchanges with other brands! For more information or to get a quote on our premium JKB3075/D3X4 chain or JKB3075D3X4 sprockets, contact our customer service team, and we will be happy to assist you!

JKB3075D3X4 Chain

• Chain Size: JKB3075/D3X4
• Pitch (P): 3.075"
• Dimension (W): 3.44"
• Dimension (L): 1.31"
• Dimension (N): 0.68"
• Pin Heat-Treat: Case-Hardened
• Dimension (D): 1.25"
• Bushing Heat-Treat: Case-Hardened
• Dimension (T): 0.38"
• Dimension (H): 1.50"
• Sidebar Heat-Treat: Hardened and Tempered
• Dimension (F): 2.06"
• Dimension (X): 4.94"
• Dimension (K): 0.67"
• Dimension (B): 0.63"
• Dimension (M): 0.50"
• Dimension (G): 0.25"
• Weight: 4.6 LBS/ Ft
