Premium SSA805-K750 Austenitic Stainless Steel Table Top Chain
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

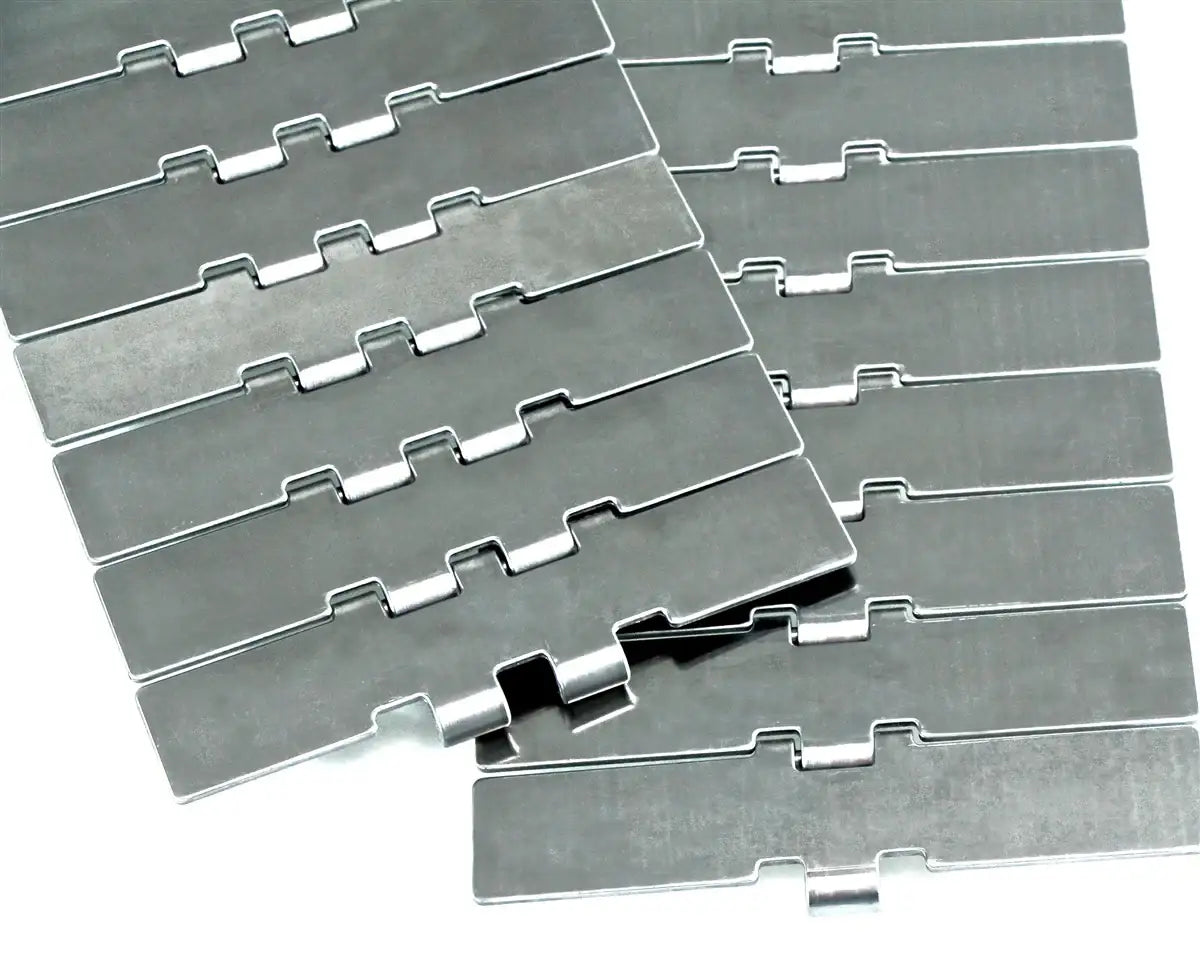

The SSA805 tabletop chain is a 7.50-inch (190.5 mm) wide straight-running stainless steel conveyor chain designed for tabletop conveyor systems operating in chemically exposed or elevated-temperature environments. Manufactured from austenitic stainless steel containing approximately 17% chromium and 8% nickel, this chain provides strong corrosion and chemical resistance while maintaining durability during continuous operation. The non-magnetic construction makes it suitable for applications where magnetic interaction must be avoided. This style of tabletop chain is commonly used in food processing, chemical processing, and high-temperature conveying systems. The chain is capable of operating across a temperature range of approximately −40°F to +752°F. Refer to the dimensional specifications below to verify compatibility with your existing conveyor chain before ordering, as some brands will not interlace. If dimensions do not match, contact us for assistance verifying compatibility.
For more information or to get a quote on Premium Table Top Chain SSA805-K750 please contact us and we will be happy to assist you!
Dimensions:
- Chain Size: SSA805-K750
- Pitch (P): 1.500"
- Plate Thickness (T): 0.122"
- Pin Diameter (D): 0.25"
- Plate Gap (G): 0.063"
- Width (L): 7.500"
- Backflex Radius (R): 5.905"
- Dimension (H): 0.260"
- Dimension (W): 3.15"
- Dimension (X): 3.27"
- Material: Austenitic Stainless Steel
- Chain Strength: 2,385 LBS
- Chain Weight: 3.90 LBS/ FT
Chain Size: SSA805-K750 Pitch (P): 1.500" Plate Thickness (T): 0.122" Pin Diameter (D): 0.25" Plate Gap (G): 0.063" Width (L): 7.500" Backflex Radius (R): 5.905" Dimension (H): 0.260" Dimension (W): 3.15" Dimension (X): 3.27" Material: Austenitic Stainless Steel Chain Strength: 2,385 LBS Chain Weight: 3.90 LBS/ FT
