• S800-K750 Steel Table Top Chain
1 1

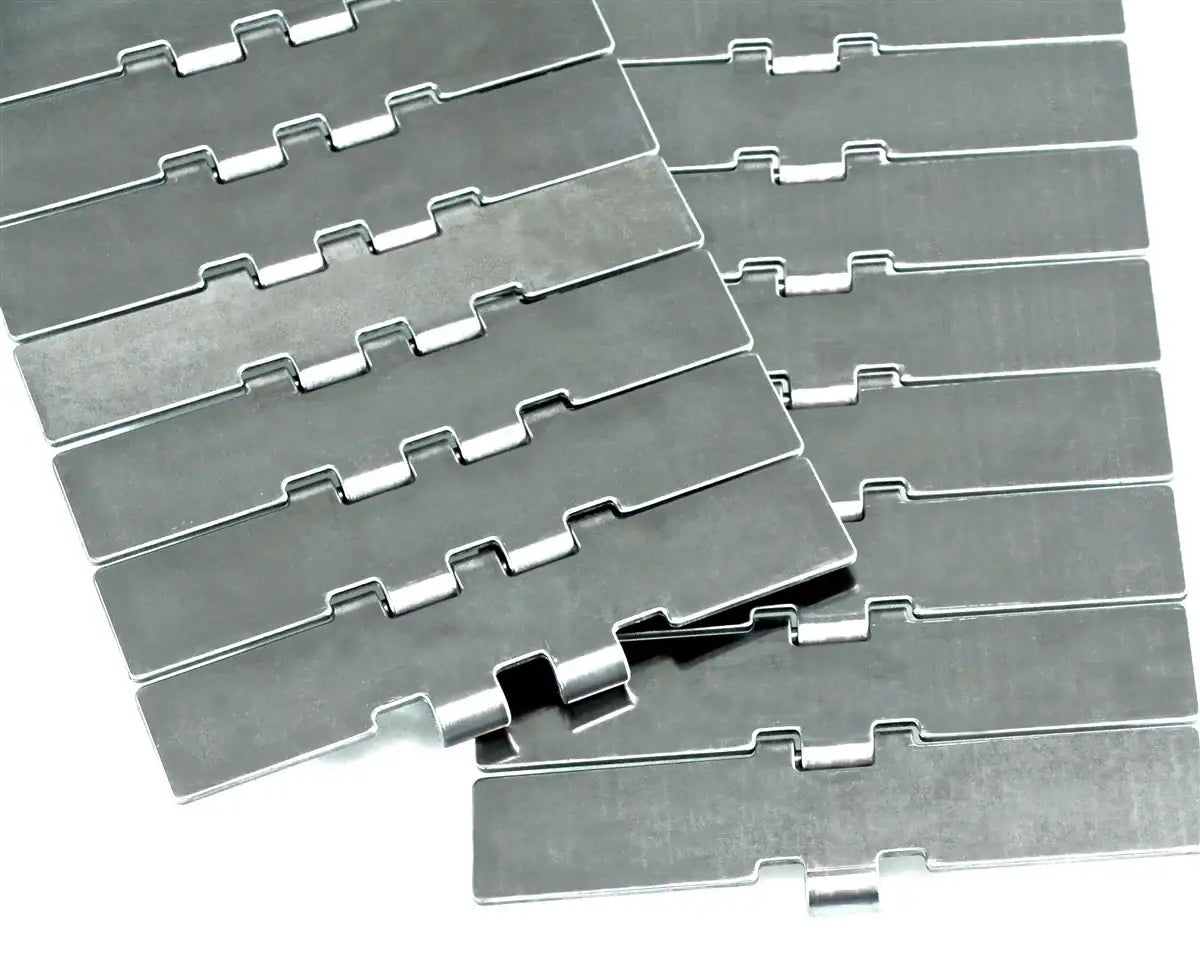

IWIS S800-K750 Steel Table Top Chain

IWIS S800-K750 Steel Table Top Chain

Note: Custom Cut to Length Chain Also Available
Product Code: I-S800-K750-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
IWIS Flexon MaxxTop Series S800-K750 Steel Table Top Chain sets its self apart from other brands by offering the utmost highest quality and best performance. This chain is high strength, superior quality, and offers the ultimate dependability to keep you up and running. S800-K750 chain is a straight-running chain that is 7.50" wide and manufactured out of steel. Each component to this chain is through herded to a 43 HRC hardness rating for extreme durability and strength. S800-K750 Steel Table Top Chain is not resistant to corrosion, but it is capable of operating in temperatures ranging from -40F to +365F. USA Roller Chain & Sprockets is an authorized distributor for IWIS brand chains so you can purchase this chain directly from us with ease. For more information or to get a quote on this chain please contact us and one of our highly trained expert customer service representatives will be happy to assist you.

Dimensions:
IWIS S800-K750 Steel Table Top Chain
  • Chain Size: S800-K750
  • Pitch (P): 1.500"
  • Plate Thickness (T): 0.122"
  • Pin Diameter (D): 0.25"
  • Plate Gap (G): 0.063"
  • Width (L): 7.500"
  • Backflex Radius (R): 5.905"
  • Dimension (H): 0.260"
  • Dimension (W): 3.15"
  • Dimension (X): 3.27"
  • Material: C45 Carbon Steel
  • Chain Strength: 4,050 LBS
  • Chain Weight: 3.90 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Chain
  • C45 Carbon Steel Material
  • Through Hardened To 43 HRC
  • Highest Mechanical Strength
  • Extremely Wear Resistant
  • -40F - + 365F Temperature Range
  • Great Performance
  • Extended Working Life
Featured image
  • Chain Size: S800-K750
  • Pitch (P): 1.500"
  • Plate Thickness (T): 0.122"
  • Pin Diameter (D): 0.25"
  • Plate Gap (G): 0.063"
  • Width (L): 7.500"
  • Backflex Radius (R): 5.905"
  • Dimension (H): 0.260"
  • Dimension (W): 3.15"
  • Dimension (X): 3.27"
  • Material: C45 Carbon Steel
  • Chain Strength: 4,050 LBS
  • Chain Weight: 3.90 LBS/ FT
