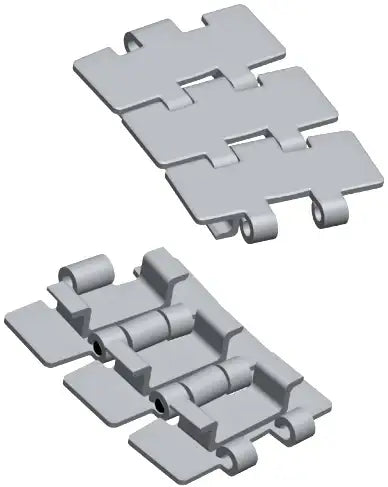

IWIS SS8810-K325 Tab Mega Stainless Steel Table Top Chain

IWIS SS8810-K325 Tab Mega Stainless Steel Table Top Chain

Note: Custom Cut to Length Chain Also Available
Product Code: I-MEGA-8810-K325-TAB-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
IWIS Flexon MaxxTop Series Mega SS8810-K325 Tab Stainless Steel Table Top Chain sets its self apart from other chains by offering the utmost highest quality, best performance, and highest strength. Mega series stainless steel table top chains are engineered for high speed and high load applications. SS8810-K325 Tab chain is a side-flexing chain that is 3.25" wide and manufactured out of premium stainless steel. Each component is through cold herded creating an ultra high surface hardness (27 HRC Rating) for extreme durability and highest strength possible. This chain is also highly resistant to corrosion and applicable for magnet chains, it is also capable of operating in temperatures ranging from -40F to +500F. USA Roller Chain & Sprockets is an authorized distributor for IWIS brand chains so you can purchase this chain directly from us with ease. For more information or to get a quote on this chain please contact us and one of our highly trained expert customer service representatives will be happy to assist you.

Dimensions:
IWIS SS8810-K325 Tab Mega Stainless Steel Table Top Chain
  • Chain Size: SS8810-K325 Tab
  • Pitch (P): 1.500"
  • Plate Thickness (T): 0.122"
  • Pin Diameter (D): 0.250"
  • Width (L): 3.250"
  • Backflex Radius (R): 3.15"
  • Minimum Curve Radius (R): 18.00"
  • Dimension (H): 0.260"
  • Dimension (F): 0.386"
  • Dimension (W): 1.693"
  • Dimension (X): 2.213"
  • Material: Stainless Steel
  • Chain Strength: 1,800 LBS
  • Chain Weight: 1.95 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Ultra High Performance Chain
  • Premium Quality Stainless Steel
  • Extremely High Strength
  • High Corrosion & Wear Resistance
  • Very High Surface Hardness
  • Highest Surface Quality
  • Applicable For Magnet Chains
  • -40F - + 500F Temperature Range
  • 27 HRC Hardness Rating
Featured image
  • Chain Size: SS8810-K325 Tab
  • Pitch (P): 1.500"
  • Plate Thickness (T): 0.122"
  • Pin Diameter (D): 0.250"
  • Width (L): 3.250"
  • Backflex Radius (R): 3.15"
  • Minimum Curve Radius (R): 18.00"
  • Dimension (H): 0.260"
  • Dimension (F): 0.386"
  • Dimension (W): 1.693"
  • Dimension (X): 2.213"
  • Material: Stainless Steel
  • Chain Strength: 1,800 LBS
  • Chain Weight: 1.95 LBS/ FT
