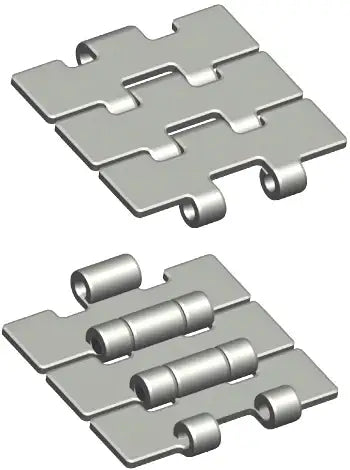

Premium SS515-K217 Mega Stainless Steel Table Top Chain
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
The SS515 tabletop chain is a 2.17-inch (55 mm) wide stainless steel conveyor chain used as a replacement or new installation chain in tabletop conveyor systems. Its straight-running design supports smooth product movement and consistent alignment in high-speed conveyors. The corrosion-resistant stainless steel construction makes it suitable for washdown, food processing, and moisture-exposed environments, and it is commonly used on bottling and packaging conveyors as well as magnetic conveyor assemblies. With an operating temperature capability from approximately −40°F to +500°F, the chain can function in both refrigerated and heated production areas. Refer to the dimensional specifications below to verify compatibility with your existing conveyor chain before ordering, as some brands will not interlace. If dimensions do not match, contact us for assistance verifying compatibility.
For more information or to get a quote on Premium Table Top Chain SS515-K217 please contact us and we will be happy to assist you!
Dimensions:
- Chain Size: SS515-K217
- Pitch (P): 1.000"
- Plate Thickness (T): 0.122"
- Pin Diameter (D): 0.250"
- Plate Gap (G): 0.063"
- Width (L): 2-11/64"
- Backflex Radius (R): 2.952"
- Dimension (H): 0.260"
- Dimension (W): 1.653"
- Dimension (X): 1.732"
- Material: Stainless Steel
- Chain Strength: 1,260 LBS
- Chain Weight: 1.55 LBS/ FT
Chain Size: SS515-K217 Pitch (P): 1.000" Plate Thickness (T): 0.122" Pin Diameter (D): 0.250" Plate Gap (G): 0.063" Width (L): 2-11/64" Backflex Radius (R): 2.952" Dimension (H): 0.260" Dimension (W): 1.653" Dimension (X): 1.732" Material: Stainless Steel Chain Strength: 1,260 LBS Chain Weight: 1.55 LBS/ FT
