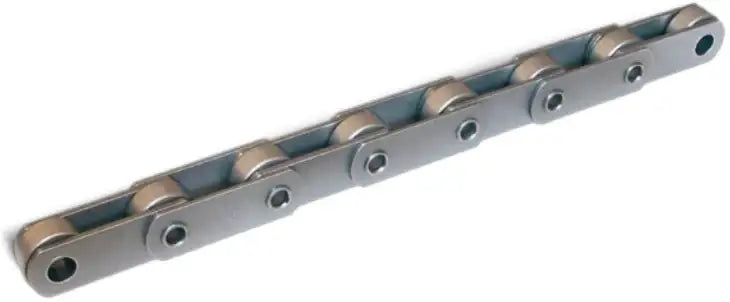

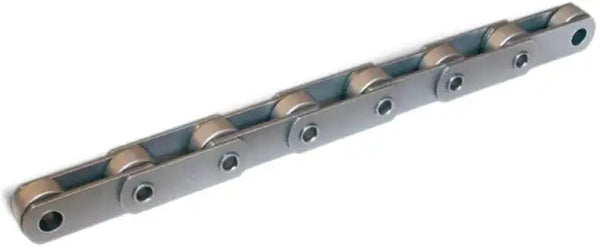

HP-1601524P Chain - Hollow Pin Chain
SKU: HP-1601524P-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
HP-1601524P Chain - Hollow Pin Chain Description/Features
HP-1601524P Chain is also known as HP160/1524/P chain and is a hollow pin conveyor chain. Primarily HP1601524P chain is found in wastewater applications, food processing, chemical plants, and even refineries. The chain has become so popular due to the hollow pin design which allows for an able area for easily affixing attachments to the outer plates through the hollow pins. The attachment can be fastened tightly against the hollow pin rivet or left in a free manner to pivot.
HP-1601524P Chain is typically made of stainless steel, zinc plated components, acetal copolymer rollers, or a combination of the three options based upon the application needs. The chains breaking load ratings are based upon the zinc plated version, technical data on other vacations can be supplied at the time of quoting. We also supply HP-1601524P Chain sprockets and can custom manufactured desired attachments for the chain upon request.
HP-1601524P Chain is typically made of stainless steel, zinc plated components, acetal copolymer rollers, or a combination of the three options based upon the application needs. The chains breaking load ratings are based upon the zinc plated version, technical data on other vacations can be supplied at the time of quoting. We also supply HP-1601524P Chain sprockets and can custom manufactured desired attachments for the chain upon request.
HP-1601524P Chain Dimensions
- Chain Size: HP160/1524/P
- Pitch (P): 152.4mm
- Breaking Load: 160 kN
- Breaking Load (with heat-treated link plates): 320 kN
- Average Weight: 22.18 kG/m
- Roller (D2): 88.9mm
- Roller (D4): 114mm
- Roller (flange thickness): 10.5mm
- Bushing Outside Diameter (D5): 38mm
- Overall Width (F1): 78mm
- Distance Between Sidebars (L): 38mm
- Sidebar Thickness (S1): 8mm
- Sidebar Thickness (S2): 8mm
- Sidebar Height (H): 60mm
- Pin Diameter (D6): 32mm
- Hollow Pin ID (D7): 22.5mm
