HMV-52E Hydraulic Nut

Power Transmission > Miscellaneous Items > Roller Bearings, Adapters & Accessories > Hydraulic Nuts

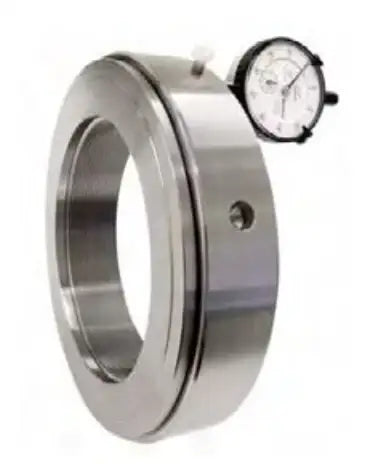

HMV-52E Hydraulic Nut

Note: Custom Cut to Length Chain Also Available
SKU: HMV-52E
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715180953967" , "metafield_value":""}]
HMV-52E Hydraulic Nut Features
HMV-52E Hydraulic Nut Specifications
This HMV-52E Hydraulic Nut is a premium quality, directly interchangeable, and durable hydraulic nut that is manufactured to strict quality control standards. HMV-52E Hydraulic Nuts are bearing mounting tools and will fit on standard H-Series adapters as well as the OH-Series hydraulic adapter sleeves with metric heads. Hydraulic pressure from a pump allows the piston in the face of the HMV Nut to push the bearing inner-ring. As the hydraulic pressure increases, the force of the piston gently pushed the tapered bearing up the adapter taper, slightly expanding the bearing inner bore, causing internal clearance to be removed from the bearing, therefor creating a press-fit to of the inner ring to the shaft. During mounting the bearing clearance should be measured until the recommended mounted running clearance for the bearing size is achieved. Once the bearing is properly mounted, the HMV nut can be replaced with the standard KM nut and washer or lock clip. Smaller and larger hydraulic nut sizes as well as inch thread hydraulic nuts are available upon request. A gauge mounting hole accommodates an axle gauge (gauge not included) for monitoring of axle moment. A spanner wrench, extra O-Ring seals, nylon screws for gauge retention and hydraulic plugs are included with each nut.

Dimensions:
HMV-52E Hydraulic Nut
  • Part Number: HMV-52E
  • Dimension (G): TR 260 X 4mm
  • Dimension (d1): 262mm
  • Dimension (d2): 341mm
  • Dimension (d3): 356mm
  • Dimension (B): 47mm
  • Dimension (B1): 9mm
  • Maximum Axial Displacement: 11mm
  • Injection Hole Thread BSP: G1/4"

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: HMV-52E
  • Dimension (G): TR 260 X 4mm
  • Dimension (d1): 262mm
  • Dimension (d2): 341mm
  • Dimension (d3): 356mm
  • Dimension (B): 47mm
  • Dimension (B1): 9mm
  • Maximum Axial Displacement: 11mm
  • Injection Hole Thread BSP: G1/4"
