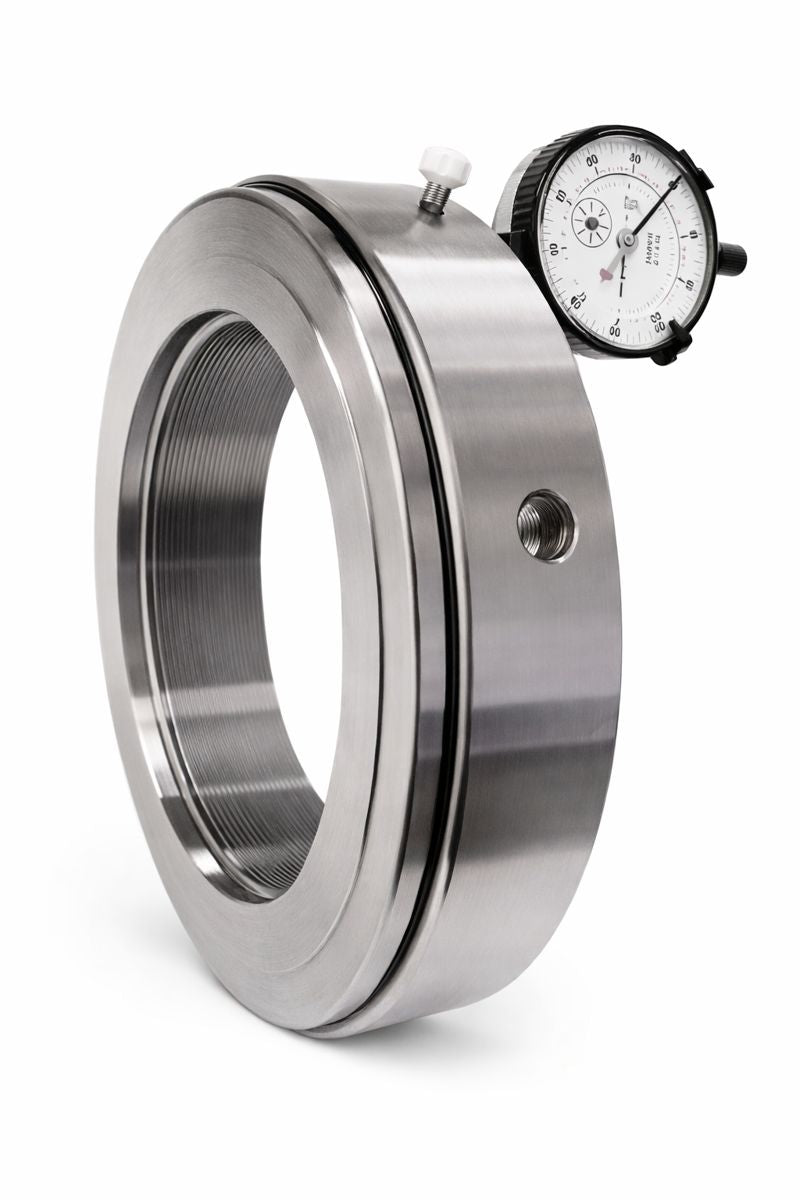

HMV-28E Hydraulic Nut

Name: HMV-28E Hydraulic Nut
Brand: USA ROLLER CHAIN
SKU: HMV-28E
Availability: InStock

Note: Inch Series Hydraulic Nuts Are Available Upon Request

SKU: HMV-28E

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

HMV-28E Hydraulic Nut Description/Features

HMV-28E Hydraulic Nut Specifications

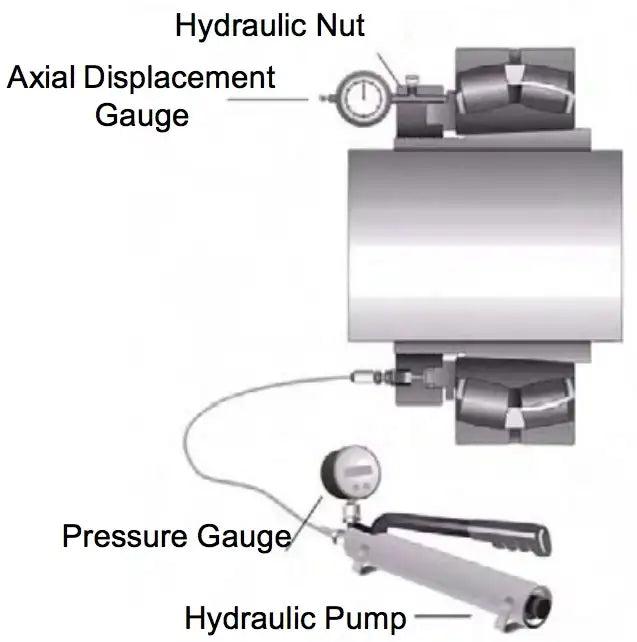

This HMV-28E Hydraulic Nut is a premium quality, directly interchangeable, and durable hydraulic nut that is manufactured to strict quality control standards. HMV-28E Hydraulic Nuts are bearing mounting tools and will fit on standard H-Series adapters as well as the OH-Series hydraulic adapter sleeves with metric heads. Hydraulic pressure from a pump allows the piston in the face of the HMV Nut to push the bearing inner-ring. As the hydraulic pressure increases, the force of the piston gently pushed the tapered bearing up the adapter taper, slightly expanding the bearing inner bore, causing internal clearance to be removed from the bearing, therefor creating a press-fit to of the inner ring to the shaft. During mounting the bearing clearance should be measured until the recommended mounted running clearance for the bearing size is achieved. Once the bearing is properly mounted, the HMV nut can be replaced with the standard KM nut and washer or lock clip. Smaller and larger hydraulic nut sizes as well as inch thread hydraulic nuts are available upon request. A gauge mounting hole accommodates an axle gauge (gauge not included) for monitoring of axle moment. A spanner wrench, extra O-Ring seals, nylon screws for gauge retention and hydraulic plugs are included with each nut.

Dimensions:

Part Number: HMV-28E
Dimension (G): M 140 X 2mm
Dimension (d1): 140.5mm
Dimension (d2): 200mm
Dimension (d3): 208mm
Dimension (B): 37mm
Dimension (B1): 7mm
Maximum Axial Displacement: 5mm
Injection Hole Thread BSP: G1/4"
