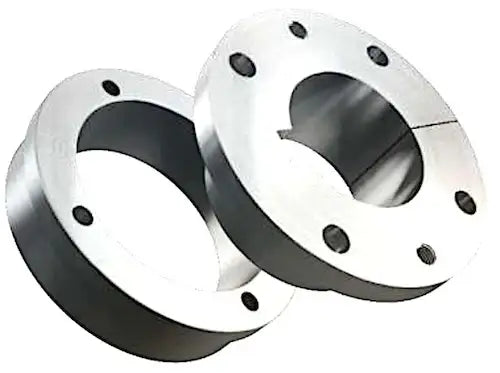

HEB50 Bushing With 5" Bore
Note:
Custom Cut to Length Chain Also Available
SKU: HEB50-5-BUSHING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HEB50 Bushing With 5" Bore Features
HEB50 Bushing With 5" Bore Specifications
HEB50 bushing with a 5" bore is explicitly designed for conveyor pulleys and end discs. Our premium HEB50 bushing with a 5" bore is manufactured to precision tolerances from high-grade steel and provides excellent compression. Additionally, the HEB50 bushing with a 5" bore interchanges with other brands and pairs with HE50 or HE50WH hubs. At USA Roller Chain, we pride ourselves on providing excellent quality HEB50 bushings with a 5" bore and HE50 weld-on hubs. For additional information or to get a quote on our HEB50 bushing with a 5" bore, contact our customer service team, and we will gladly assist you.
HEB50 Bushing X 5" Dimensions
- Bushing Size: HEB50
- Bore Size: 5"
- Flange Diameter (E): 9.625"
- Flange Width (F): 1.500"
- Total Length (G): 3.700"
- Bolt Circle (H): 8.000"
- # of Bolts: 6
- Bolt Size: 3/4"
- Maximum Bolt Torque: 1,530 In/ LBS
- Bushing Size: HEB50
- Bore Size: 5"
- Flange Diameter (E): 9.625"
- Flange Width (F): 1.500"
- Total Length (G): 3.700"
- Bolt Circle (H): 8.000"
- # of Bolts: 6
- Bolt Size: 3/4"
- Maximum Bolt Torque: 1,530 In/ LBS
