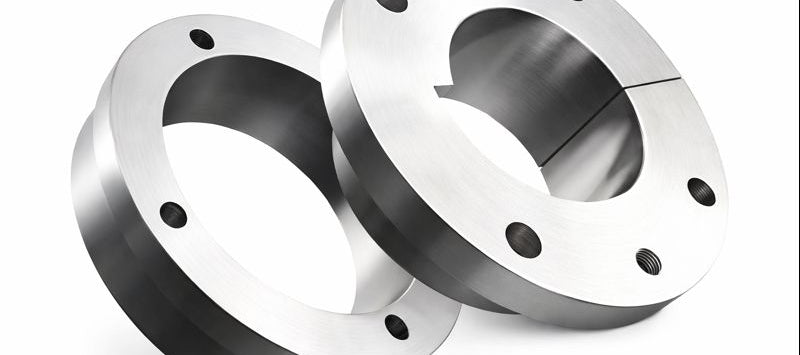

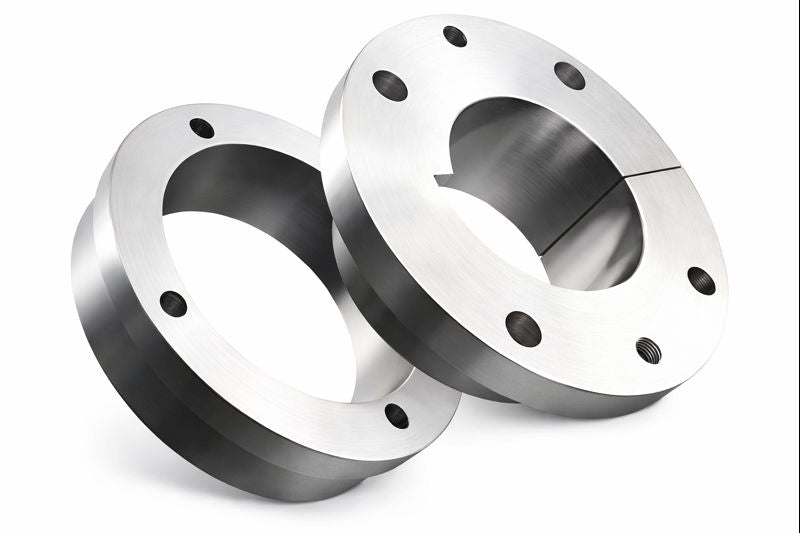

HEB45 Stainless Steel Bushing With 3-1/2" Bore
Note:
Actual Product May Appear Different Than Photo
SKU: HEB45-3-12-SS-BUSHING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
HEB45 Stainless Steel Bushing With 3-1/2" Bore Description/Features
HEB45 Stainless Steel Bushing With 3-1/2" Bore Specifications
The HEB45 stainless steel bushing with a 3-1/2" bore was created to be used in conveyor pulley and end disc applications. Our premium stainless HEB45 bushing with a 3-1/2" bore is machined out of 300-grade stainless steel, giving it the ability to operate in corrosive, abrasive, and food grade environments. Additionally, our HEB45 stainless steel bushing with a 3-1/2" bore is directly interchangeable with other brands and is to be used with HE45 stainless steel hubs. For more information or a quote on our HEB45 stainless steel bushing with a 3-1/2" bore, contact our customer service team, and we will gladly assist you!
Stainless HEB45 Bushing X 3-1/2" Dimensions
- Bushing Size: HEB45SS
- Bore Size: 3-1/2"
- Flange Diameter (E): 8.750"
- Flange Width (F): 1.250"
- Total Length (G): 3.200"
- Bolt Circle (H): 7.313"
- # of Bolts: 6
- Bolt Size: 5/8"
- Bushing Size: HEB45SS
- Bore Size: 3-1/2"
- Flange Diameter (E): 8.750"
- Flange Width (F): 1.250"
- Total Length (G): 3.200"
- Bolt Circle (H): 7.313"
- # of Bolts: 6
- Bolt Size: 5/8"
