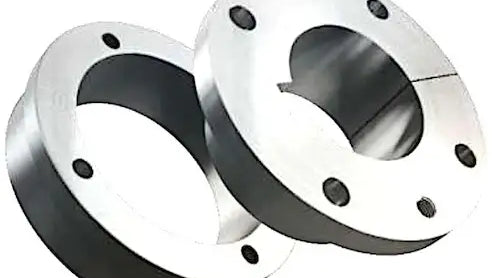

HEB40 Stainless Steel Bushing With 3-7/8" Bore
Note:
Actual Product May Appear Different Than Photo
SKU: HEB40-3-78-SS-BUSHING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
HEB40 Stainless Steel Bushing With 3-7/8" Bore Description/Features
HEB40 Stainless Steel Bushing With 3-7/8" Bore Specifications
Our HEB40 stainless steel bushing is a taper-lock type bushing precision made from 300-grade stainless steel. The stainless material allows this HEB40 stainless bushing to operate in abrasive, food-grade, and corrosive environments! HEB40 stainless steel bushings with a 3-7/8" bore are placed within HE40 weld-on hubs and were created to be used within conveyor pulleys and end discs. For more information or a quote on our HEB40 stainless steel bushing with a 3-7/8" bore, contact our customer service team, and we will gladly assist you!
Stainless HEB40 Bushing X 3-7/8" Dimensions
- Bushing Size: HEB40SS
- Bore Size: 3-7/8"
- Flange Diameter (E): 7.500"
- Flange Width (F): 1.000"
- Total Length (G): 2.925"
- Bolt Circle (H): 6.313"
- # of Bolts: 4
- Bolt Size: 5/8"
- Bushing Size: HEB40SS
- Bore Size: 3-7/8"
- Flange Diameter (E): 7.500"
- Flange Width (F): 1.000"
- Total Length (G): 2.925"
- Bolt Circle (H): 6.313"
- # of Bolts: 4
- Bolt Size: 5/8"
