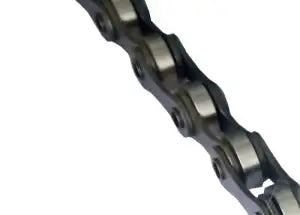

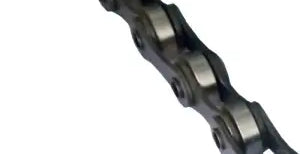

HB50 Hollow Pin Roller Chain

Name: HB50 Hollow Pin Roller Chain
Brand: USA ROLLER CHAIN
SKU: HB50-CHAIN
Availability: InStock

SKU: HB50-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

HB50 Hollow Pin Roller Chain Description/Features

HB50 Hollow Pin Roller Chain Specifications

This HB50 hollow pin roller chain is a high-quality, durable, and dependable product that was manufactured precisely to DIN Metric standards. HB50 chain is used in a wide range of applications including; conveyor systems, agriculture equipment, and more! This chain is typically stock in 10ft boxes and 5-meter boxes, each containing one connecting link for connecting. USA Roller Chain and Sprockets is a leading authority when it comes to industrial chain! We have a highly-trained expert staff that is focused on providing you with the best customer care and knowledge available. We also offer a full line high-quality HB50 sprockets and a large amount of other items. To get a quote please contact us and we will be happy to work with you!

Dimensions:

Chain #: HB50
Pitch (P): 50mm
Inner Width (B): 10mm
Roller Diameter (D1): 30mm
Hollow Pin Outside Diameter (D2): 11.5mm
Hollow Pin Inside Diameter (D): 8.0mm
Plate Thickness (S): 3.0mm
Plate Height (G): 25.4mm
Chain Width (L): 26.6mm
