H78 K1 Attachment

Specialty Chain > Engineering Class Chains > More Engineer Class Chains > H Class Chains > H78 Mill Chain

H78 K1 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: H78-K1-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715167682927" , "metafield_value":""}]
H78 K1 Attachment Features
H78 K1 Attachment Specifications

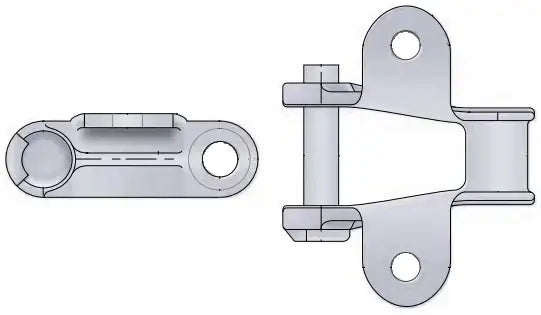

This H78 K1 attachment is a high quality precision attachment that is a common stock item, and can be assembled onto H78 chain in any configuration needed or sold as an individual H78 K-1 attachment link. For more information or to get a quote on H78 chain with K1 attachments or attachment links please contact us and we will be happy to assist you.

Dimensions:
H78 K1 Attachment
  • Attachment Size: H78 K1
  • Pitch: 2.609"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Dimension (J): 0.81"
  • Dimension (K): 1.25"
  • Dimension (M): 4.00"
  • Dimension (R): 1.38"
  • Dimension (T): 0.22"
  • Dimension (W): 5.00"
  • Weight: 5.6 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Attachment Size: H78 K1
  • Pitch: 2.609"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Dimension (J): 0.81"
  • Dimension (K): 1.25"
  • Dimension (M): 4.00"
  • Dimension (R): 1.38"
  • Dimension (T): 0.22"
  • Dimension (W): 5.00"
  • Weight: 5.6 LBS/ FT
