H78 F4 Attachment

Home > Specialty Chain > Engineering Class Chains > More Engineer Class Chains > H78 F4 Attachment

H78 F4 Attachment

Note: Contact Us For Large Quantity Request

SKU: H78-F4-ATTACHMENT

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Buy it With:

H74 Chain

H78 F4 Attachment Description/Features

H78 F4 Attachment Specifications

This H78 F4 attachment is a high quality precision attachment that is a common stock item, and can be assembled onto H78 chain in any configuration needed or sold as an individual H78 F-4 attachment link. For more information or to get a quote on H78 chain with F4 attachments or attachment links please contact us and we will be happy to assist you.

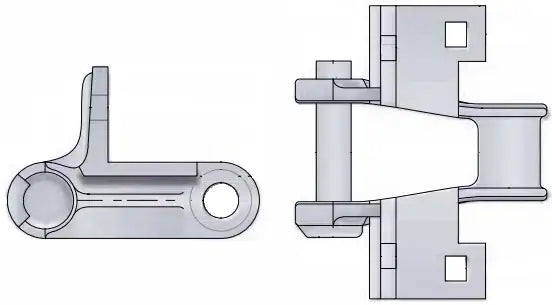

Dimensions:

Attachment Size: H78 F4
Pitch: 2.609"
Bolt Diameter (D): 0.38"
Hole Diameter (D): 0.41"
Bolt Diameter (D1): 0.38"
Hole Diameter (D1): 0.41"
Dimension (J): 2.12"
Dimension (K): 1.94"
Dimension (M): 4.50"
Dimension (M1): 3.75"
Dimension (P): 0.88"
Dimension (R): 1.31"
Dimension (T): 0.25"
Dimension (T1): 0.38"
Dimension (U): 1.44"
Dimension (W): 5.38"
Weight: 8.1 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Attachment Size: H78 F4
Pitch: 2.609"
Bolt Diameter (D): 0.38"
Hole Diameter (D): 0.41"
Bolt Diameter (D1): 0.38"
Hole Diameter (D1): 0.41"
Dimension (J): 2.12"
Dimension (K): 1.94"
Dimension (M): 4.50"
Dimension (M1): 3.75"
Dimension (P): 0.88"
Dimension (R): 1.31"
Dimension (T): 0.25"
Dimension (T1): 0.38"
Dimension (U): 1.44"
Dimension (W): 5.38"
Weight: 8.1 LBS/ FT
