H78 A1 Attachment (Left)

Name: H78 A1 Attachment (Left)
Brand: USA ROLLER CHAIN
SKU: H78-A1L-ATTACHMENT
Availability: InStock

Note: Contact Us For Large Quantity Request

SKU: H78-A1L-ATTACHMENT

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

H78 Chain

H78 A1 Attachment (Left) Description/Features

H78 A1 Attachment (Left) Specifications

This H78 A1 attachment is a left-side attachment and is typically in sock, the attachment can be assembled onto H78 chain in any configuration needed or sold has separate H78 A-1 attachment links. For more information or to get pricing and availability please contact us and we will be happy to assist you.

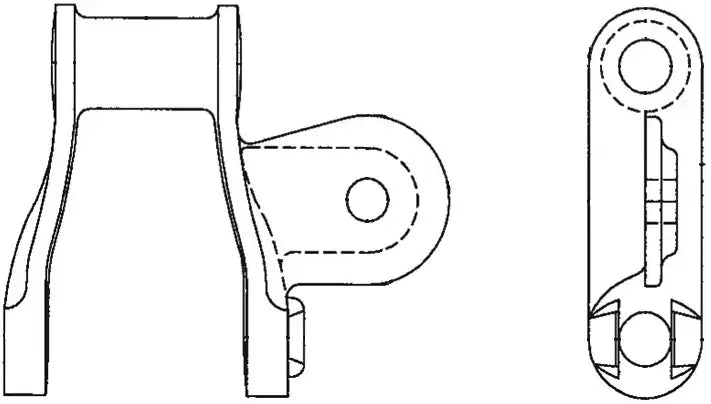

Dimensions:

Attachment Size: H78 A1R
Pitch: 2.609"
Bolt Diameter (D): 0.38"
Hole Diameter (D): 0.38"
Dimension (J): 0.41"
Dimension (K): 1.31"
Dimension (M): 3.00"
Dimension (N): 2.19"
Dimension (R): 1.62"
Dimension (T): 0.310"
Weight: 4.8 LBS/ FT
