H74 F4 Attachment

Specialty Chain > Engineering Class Chains > More Engineer Class Chains > H Class Chains > H74 Mill Chain

H74 F4 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: H74-F4-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715167420783" , "metafield_value":""}]
H74 F4 Attachment Features
H74 F4 Attachment Specifications
This H74 F4 attachment is a high quality precision attachment that is a common stock item, and can be assembled onto H74 chain in any configuration needed or sold as an individual H74 F-4 attachment link. For more information or to get a quote on H74 chain with F4 attachments or attachment links please contact us and we will be happy to assist you.

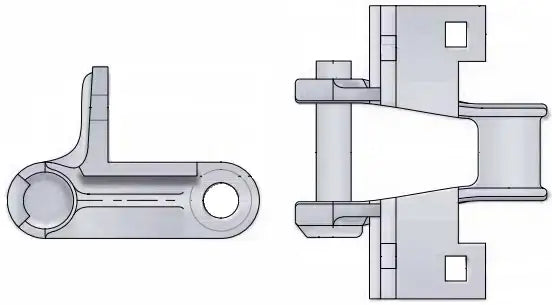

Dimensions:

  • Attachment Size: H74 F4
  • Pitch: 2.609"
  • Bolt Diameter (D): 0.31"
  • Hole Diameter (D): 0.34"
  • Bolt Diameter (D1): 0.38"
  • Hole Diameter (D1): 0.41"
  • Dimension (J): 2.12"
  • Dimension (K): 1.94"
  • Dimension (M): 4.12"
  • Dimension (M1): 3.25"
  • Dimension (P): 0.88"
  • Dimension (R): 1.12"
  • Dimension (T): 0.25"
  • Dimension (T1): 0.38"
  • Dimension (U): 1.38"
  • Dimension (W): 4.88"
  • Weight: 6.0 LBS/FT
