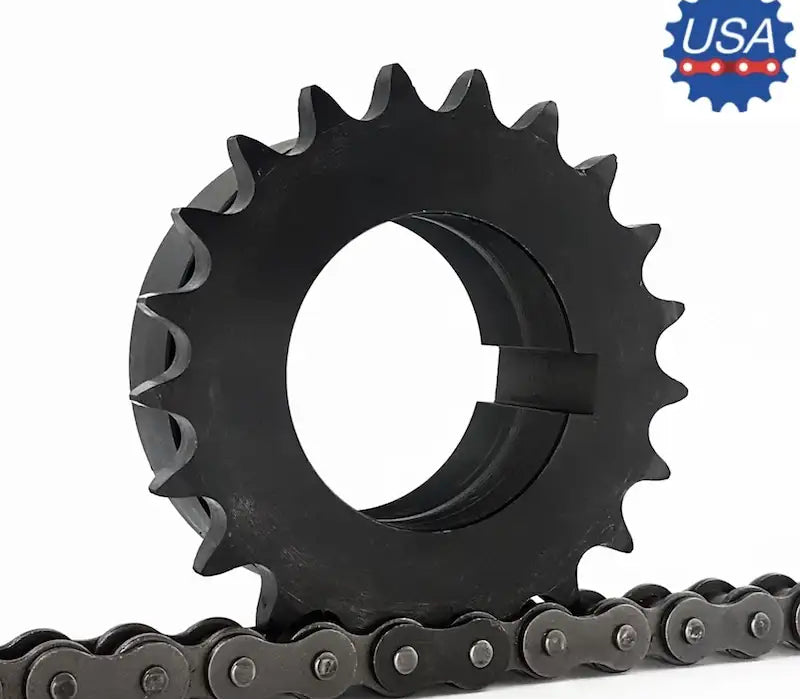

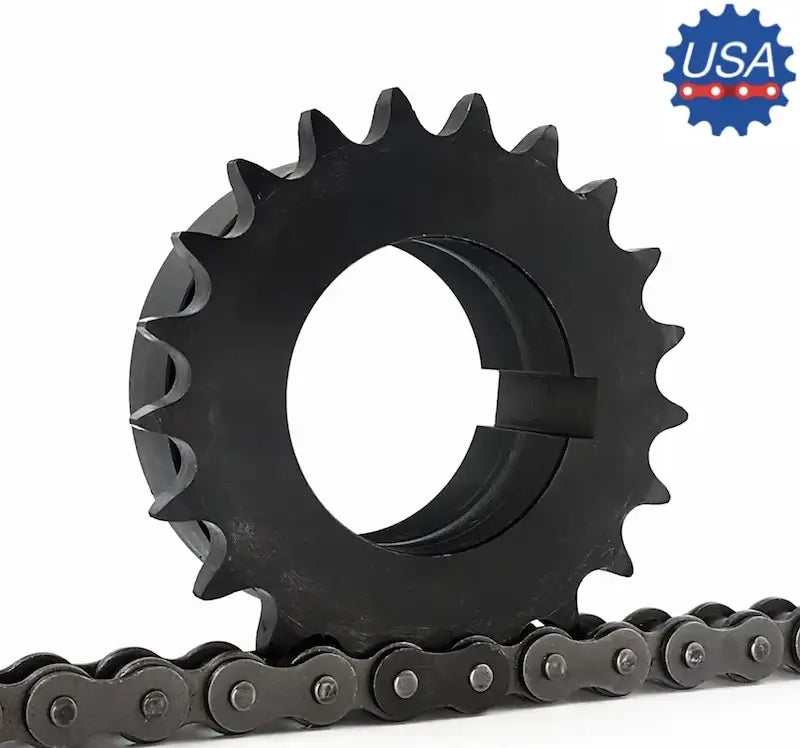

Premium H60P27 Sprocket
Note:
Custom Cut to Length Chain Also Available
$77.99
SKU: H60P27-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium H60P27 Sprocket Features
Premium H60P27 Sprocket Specifications
This H60P27 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a P1 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. H60P27 sprockets are bored to accept a P1 type taper bushing, which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: H60P27
- Bushing Type: P1
- Tooth Count: 27
- Outside Diameter: 6.870"
- Pitch Diameter: 6.460"
- Sprocket Type: 4
- Dimension (OL): 2-3/16"
- Dimension (L): 1-15/16"
- Dimension (H): 3"
- Dimension (P): 1-15/32"
- Dimension (T): 0.459"
- Sprocket Weight: 4.5 LBS
- Bushing Weight: 1.3 LBS
Email:
- Sprocket Size: H60P27
- Bushing Type: P1
- Tooth Count: 27
- Outside Diameter: 6.870"
- Pitch Diameter: 6.460"
- Sprocket Type: 4
- Dimension (OL): 2-3/16"
- Dimension (L): 1-15/16"
- Dimension (H): 3"
- Dimension (P): 1-15/32"
- Dimension (T): 0.459"
- Sprocket Weight: 4.5 LBS
- Bushing Weight: 1.3 LBS
