H110 Chain

H110 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: H110-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

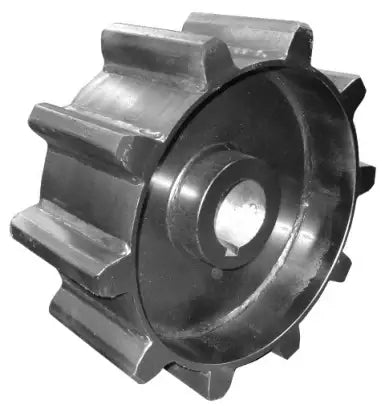

H110 Chain Sprockets
H110 Chain Sprockets
Login
View full details
Description
Specification

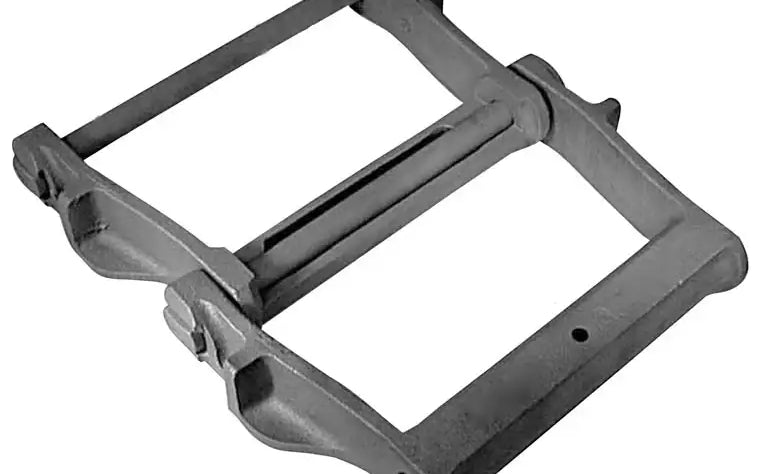

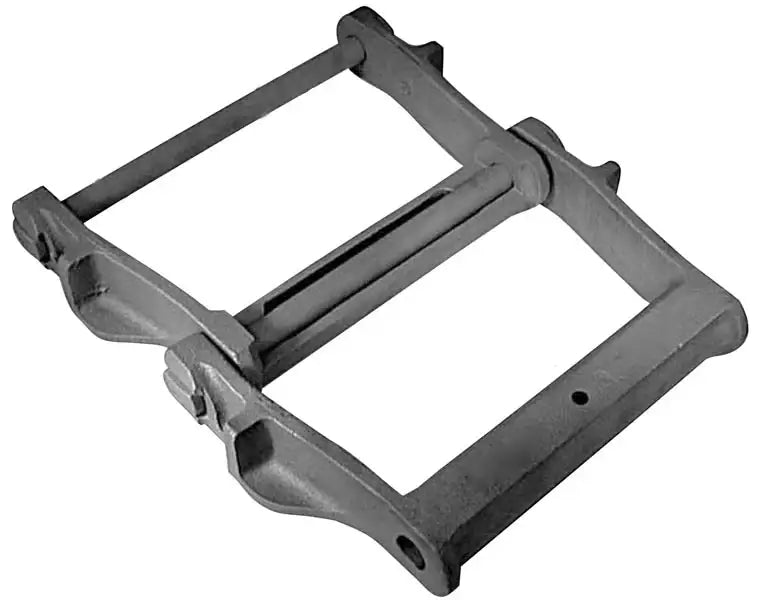

H110 Chain is an H-Class refuse drag chain that is manufactured with Promal cast links and heat-treated carbon steel pins for added durability. This H110 chain is extremely durable, high quality, and is used for conveying abrasive waste materials through wooden or steel troughs. Due to the large and wide opening area, this chain has/ provides a sizable carrying capacity when operated at moderate speeds, even in harsh and demanding applications. When in operation, links should always be run in the direction of the closed barrel. Besides the chain its self, we also have a full line of high-quality H110 chain sprockets. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:
H110 Chain
  • Chain Size: H110
  • Pitch: 6.00"
  • Maximum Allowable Sprocket Face (A): 9.00"
  • Pin Diameter (E): 0.625"
  • Sidebar Height (H): 1.50"
  • Overall Width (N): 12.50"
  • Length Of Barrel (X): 10.62"
  • Maximum Recommended Working Load: 6,100 LBS
  • Average Ultimate Strength: 36,400 LBS
  • Links Per 10ft: 20
  • Weight: 12.9 LBS/ FT
  • Note: Available In Riveted Construction Only

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Chain
  • Extremely Durable
  • Features Heat Treated Pins
  • Usable In Abrasive Environments
  • Typically In-Stock
Featured image
  • Chain Size: H110
  • Pitch: 6.00"
  • Maximum Allowable Sprocket Face (A): 9.00"
  • Pin Diameter (E): 0.625"
  • Sidebar Height (H): 1.50"
  • Overall Width (N): 12.50"
  • Length Of Barrel (X): 10.62"
  • Maximum Recommended Working Load: 6,100 LBS
  • Average Ultimate Strength: 36,400 LBS
  • Links Per 10ft: 20
  • Weight: 12.9 LBS/ FT
  • Note: Available In Riveted Construction Only
