H-3264 Adapter Sleeve

Power Transmission > Miscellaneous Items > Roller Bearings, Adapters & Accessories > Adapter Sleeves > H3200 Series Adapter Sleeves

H-3264 Adapter Sleeve

Note: Custom Cut to Length Chain Also Available
SKU: H-3264-ADAPTER-SLEEVE
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715161194863" , "metafield_value":""}]
H-3264 Adapter Sleeve Features
H-3264 Adapter Sleeve Specifications

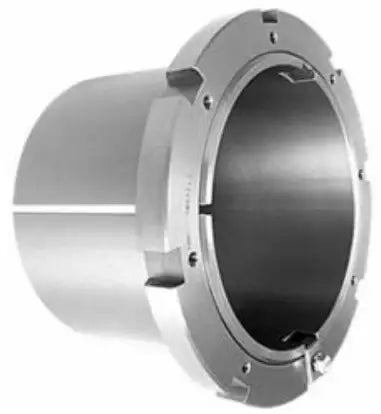

This H-3264 Adapter Sleeve features a 300 millimeter (12") bore and is a premium quality, high precision adapter sleeve. H-3264 adapter sleeves are supplied with the accompanying nut, lock plate, and lock plate bolt. This adapter sleeve is made for use with 232 series spherical bearings, which we also offer a full line of. For more information or to get a quote on the adapter sleeve or spherical bearings, please contact us and we will be happy to assist you.

Dimensions:
H-3264 Adapter Sleeve
  • Part Number: H-3264
  • Dimension (N): 300mm (12")
  • Other Bore Sizes: 11-7/16", 11-1/2", 11-15/16"
  • Dimension (H): 320mm
  • Dimension (L): 258mm
  • Dimension (D): 400mm
  • Dimension (C): 42mm
  • Dimension (W): 55mm
  • Nut Size: HM3164
  • Lock Plate Size: MS3164
  • Lock Plate Bolt: M10 X 30
  • Weight: 40 KG

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: H-3264
  • Dimension (N): 300mm (12")
  • Other Bore Sizes: 11-7/16", 11-1/2", 11-15/16"
  • Dimension (H): 320mm
  • Dimension (L): 258mm
  • Dimension (D): 400mm
  • Dimension (C): 42mm
  • Dimension (W): 55mm
  • Nut Size: HM3164
  • Lock Plate Size: MS3164
  • Lock Plate Bolt: M10 X 30
  • Weight: 40 KG
