General Duty Plus C2162H Conveyor Chain - 10ft Box

Roller Chain > More Roller Chains > Double Pitch Roller Chain > Double Pitch Conveyor Roller Chain > C2162H Conveyor Chain

General Duty Plus C2162H Conveyor Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$1,024.99
SKU: GDP-C2162H-CONVEYOR-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715158278511" , "metafield_value":""}]
General Duty Plus C2162H Conveyor Chain - 10ft Box Features
General Duty Plus C2162H Conveyor Chain - 10ft Box Specifications

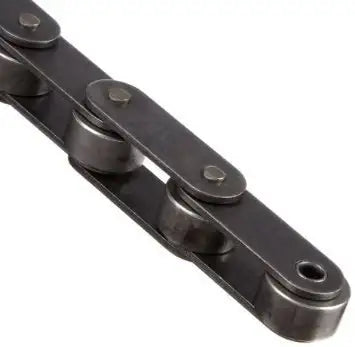

General Duty Plus C2162H conveyor chain is manufactured to out-last and out-perform standard C2162H conveyor chains by being manufactured using higher precision components and higher quality components. This chain features oversized rollers making it good for a wide range of conveying, drive, and carry applications. C2162H conveyor chain is typically supplied as 10ft boxes including one connecting link per box, be alternate lengths are available upon request. Additionally, This roller chain dimensionally fully meets all ANSI Standards so it will operate on standard C2162H sprockets just like other chains. For more information or to submit a large-quantity quote please contact us and we will be happy to assist you!

Dimensions:
General Duty Plus C2162H Conveyor Chain - 10ft Box

  • Chain Size: C2162H
  • Pitch (P): 4.000"
  • Roller Width (W): 1.250"
  • Roller Diameter (R): 2.250"
  • Plate Height (H): 1.898"
  • Plate Thickness (T): 0.281"
  • Pin Diameter (D): 0.562"
  • Chain Width (F): 2.620"
  • Connecting Link Width (G): 2.800"
  • Tensile Strength: 64,240 LBS
  • Weight: 9.120 LBS/ FT


Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!

  • Chain Size: C2162H
  • Pitch (P): 4.000"
  • Roller Width (W): 1.250"
  • Roller Diameter (R): 2.250"
  • Plate Height (H): 1.898"
  • Plate Thickness (T): 0.281"
  • Pin Diameter (D): 0.562"
  • Chain Width (F): 2.620"
  • Connecting Link Width (G): 2.800"
  • Tensile Strength: 64,240 LBS
  • Weight: 9.120 LBS/ FT
