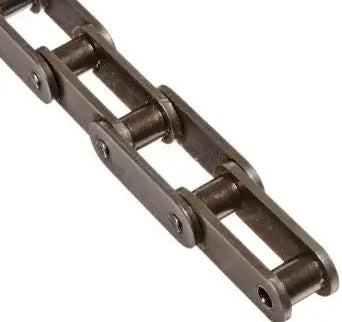

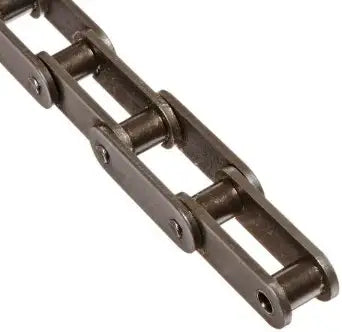

General Duty Plus C2050 Roller Chain - 10ft Box

Name: General Duty Plus C2050 Roller Chain - 10ft Box
Brand: USA ROLLER CHAIN
SKU: GDP-C2050-ROLLER-CHAIN
Price: 59.99 USD
Availability: InStock

Note: Custom Cut to Length Chain Also Available

$59.99

SKU: GDP-C2050-ROLLER-CHAIN

Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Don’t see what you need?

Call us

Buy it With:

General Duty Plus C2050 Roller Chain - 10ft Box Features

General Duty Plus C2050 Roller Chain - 10ft Box Specifications

General Duty Plus C2050 roller chain is manufactured to out-last and out-perform standard C2050 roller chains by being manufactured using higher precision components and higher quality components. This roller chain dimensionally fully meets all ANSI Standards so it will operate on standard C2050 sprockets just like other chains. C2050 chain typically comes in 10ft boxes including one connecting link each, however we do offer 50ft reels, 100ft reels, and specific cut to length strands per request. For more information or to submit a large-quantity quote please contact us and we will be happy to assist you!

Dimensions:

Chain Size: C2050
Pitch (P): 1.250"
Roller Width (W): 0.375"
Roller Diameter (R): 0.400"
Plate Height (H): 0.593"
Plate Thickness (T): 0.080"
Pin Diameter (D): 0.200"
Chain Width (F): 0.806"
Connecting Link Width (G): 0.856"
Tensile Strength: 6,300 LBS
Weight: 0.560 LBS/ FT

Important Note:
When looking for C2050 roller chain (photo below on the left) it is important, not to mix it up with C2052 roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2050".
VS.
