General Duty Plus #60H Heavy Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$99.99
SKU: GDP-60H-10FT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
General Duty Plus #60H Heavy Roller Chain - 10ft Box Features
General Duty Plus #60H Heavy Roller Chain - 10ft Box Specifications

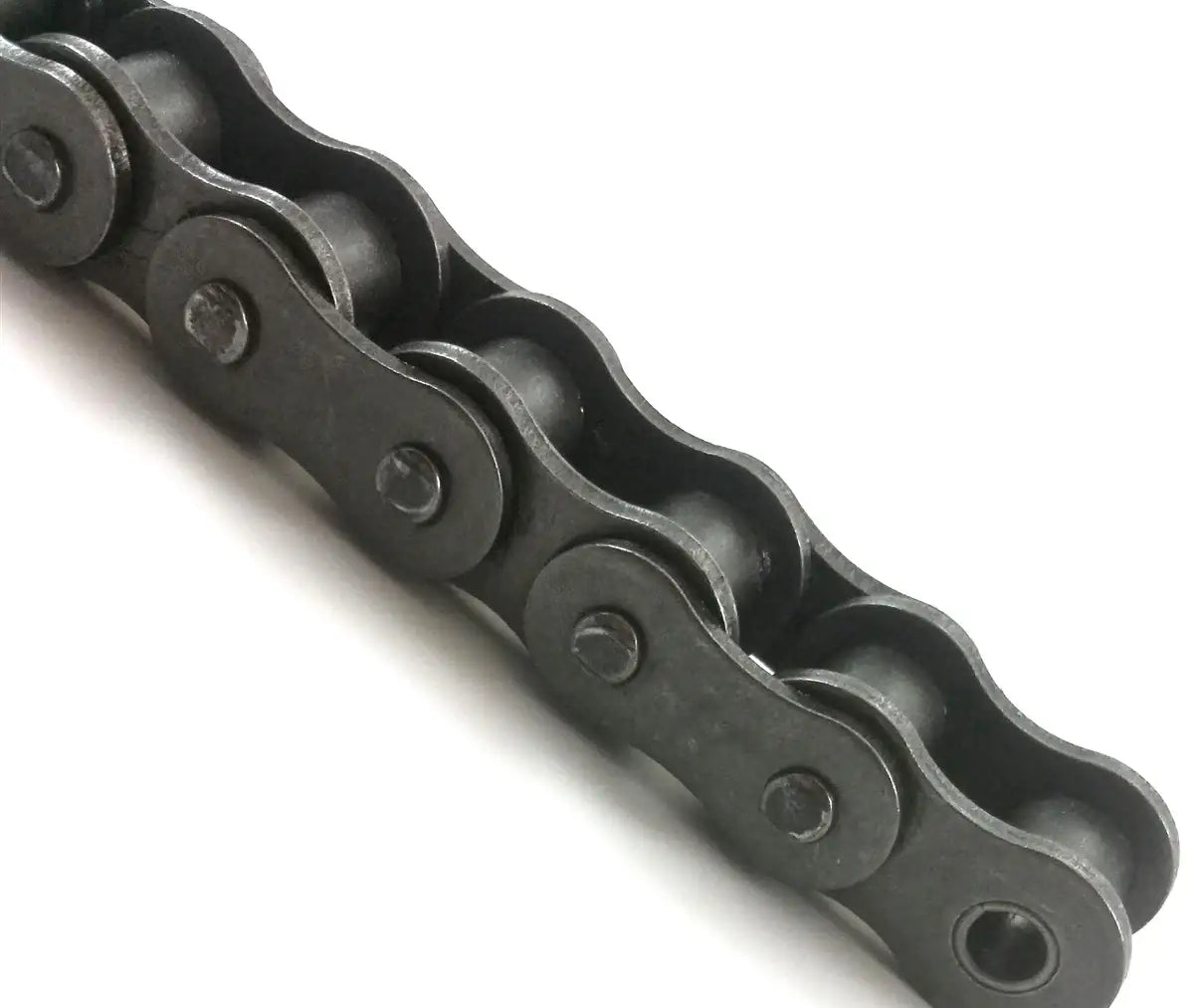

General Duty Plus #60H heavy roller chain is a high quality ANSI standard roller chain. This #60H roller chain features heat-treated and shot peened components including the pins, side plates, rollers, and bushings. Doing this to a roller chain greatly increases the strength, working life, and durability of a chain. The "H" designates that his chain has thicker side plates and is part of the heavy series of roller chains. Having thicker sides plate increases strength, shock load, fatigue, and the overall working life of the chain. General Duty Plus #60H roller chain has a tensile strength of 12,500lbs and is constructed of high quality carbon steel. #60H heavy roller chain is commonly supplied in 10ft boxes but is also available on 50ft reels, 100ft reels, and as custom lengths per request. USA Roller Chain and Sprockets also offers a full line of attachments for this chain and a full line of high quality sprockets! For more information or if you need a custom length please contact us.
#60H Heavy Roller Chain Dimensions
Chain Size: #60H Note: All Dimensions Are Given In Inches Tensile Strength: 12,500lbs Pitch (P): 0.750" Roller Width (W): 0.500" Roller Diameter (D): 0.469" Overall Chain Width (F): 1.140" Link Plate Height (H): 0.712" Link Plate Thickness (T): 0.125" Pin Diameter (E): 0.234" Specifications Met: ANSI Standards
Chain Size: #60H Note: All Dimensions Are Given In Inches Tensile Strength: 12,500lbs Pitch (P): 0.750" Roller Width (W): 0.500" Roller Diameter (D): 0.469" Overall Chain Width (F): 1.140" Link Plate Height (H): 0.712" Link Plate Thickness (T): 0.125" Pin Diameter (E): 0.234" Specifications Met: ANSI Standards
