General Duty Plus #35-2 Double Strand Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

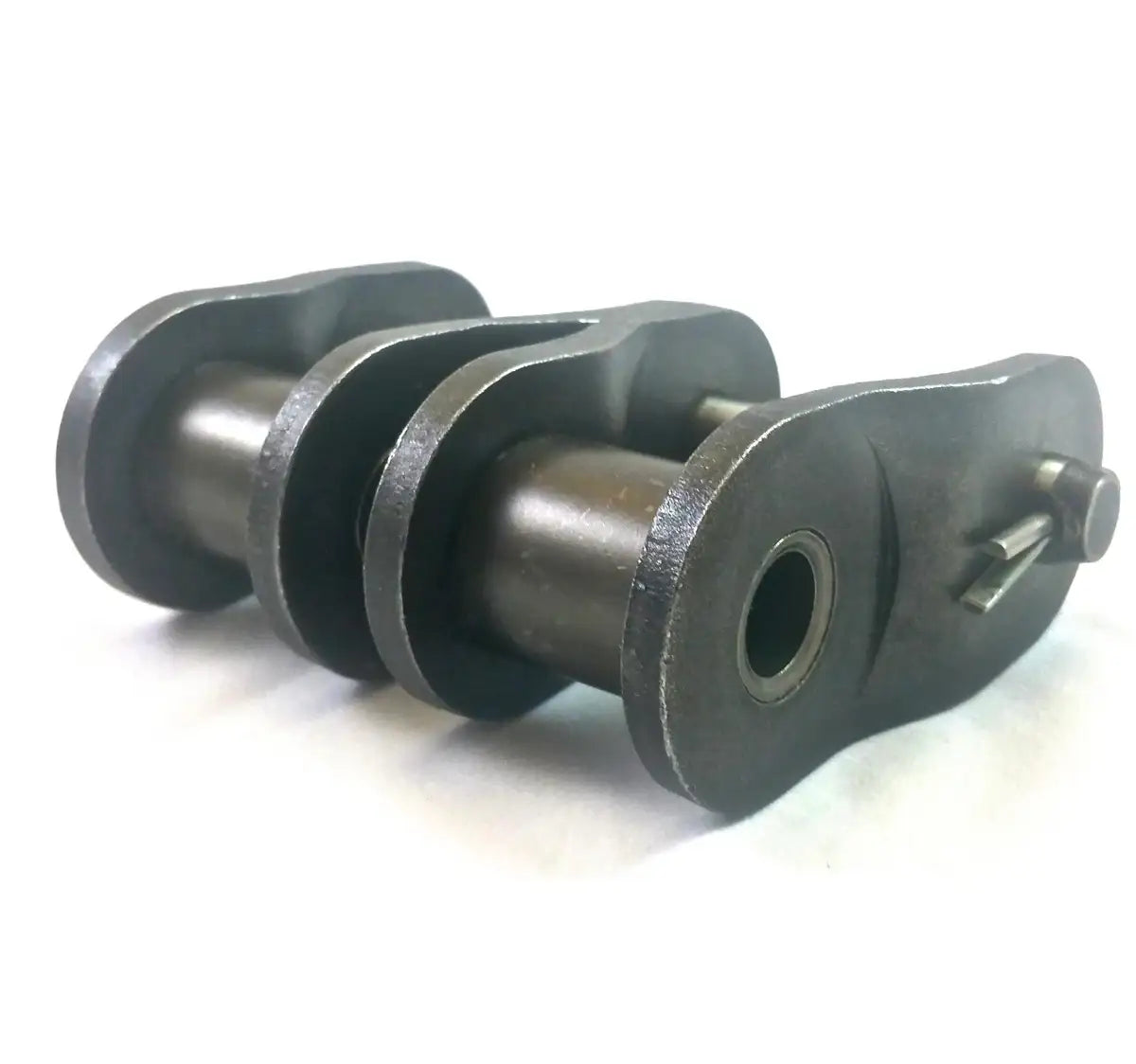

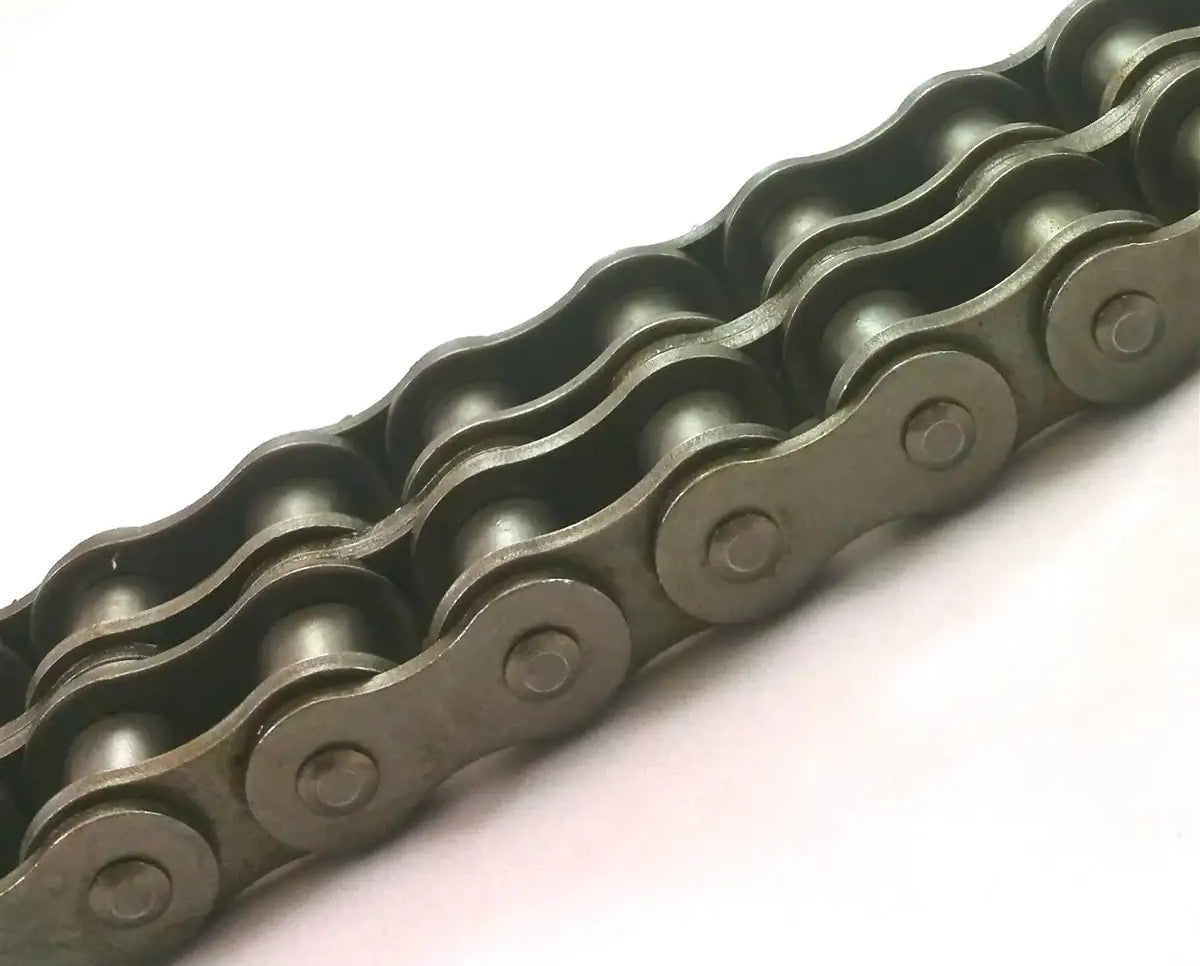

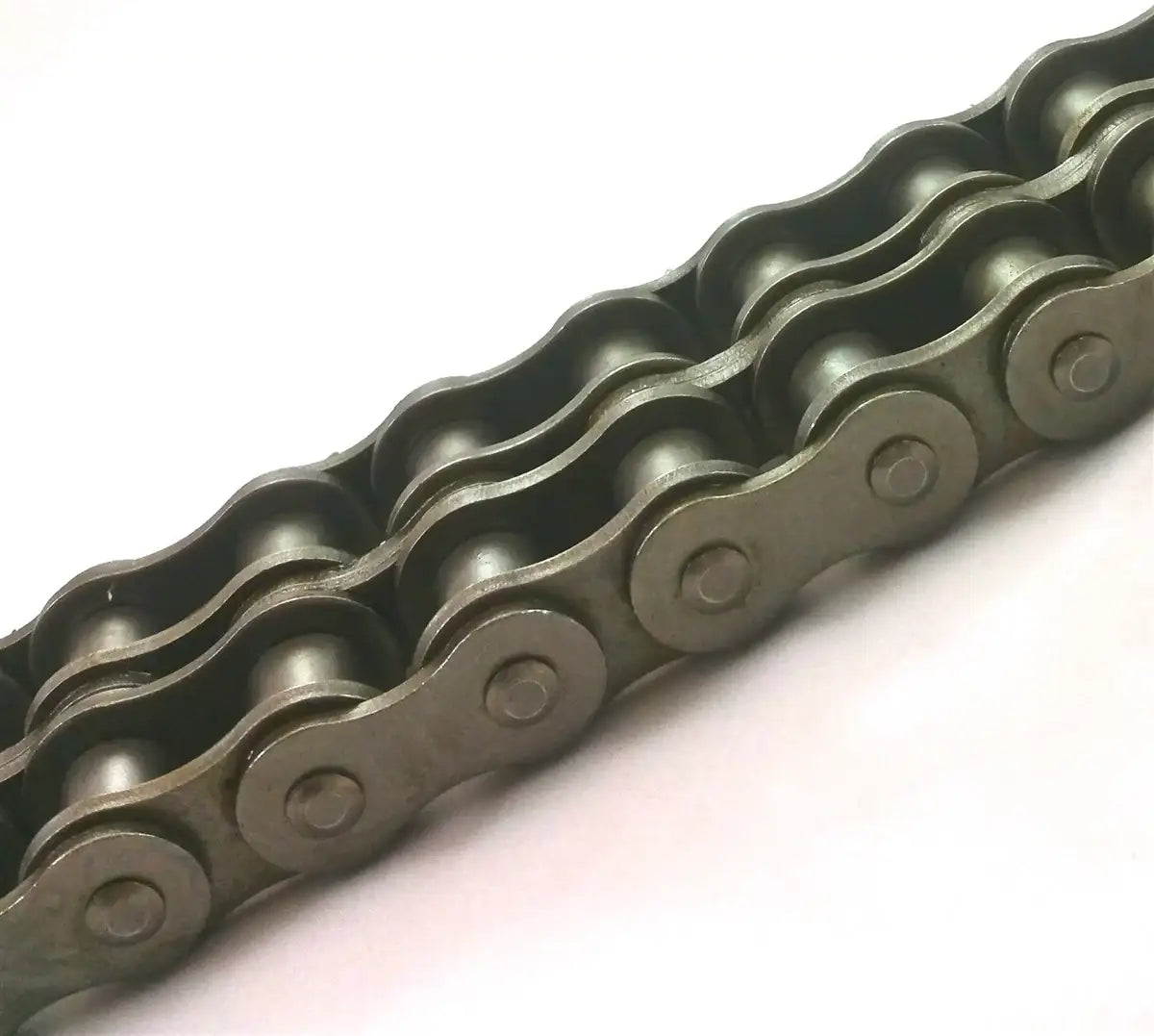

This #35-2 double strand roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat-treated components that drastically increase the chains strength, working life, and overall performance. This #35-2 double strand roller chain has a tensile strength of 4,700lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #35-2 double strand roller chain at alternate lengths per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #35-2 Double Strand Roller chain or any of its accessories, please contact us and we will be happy to assist you.

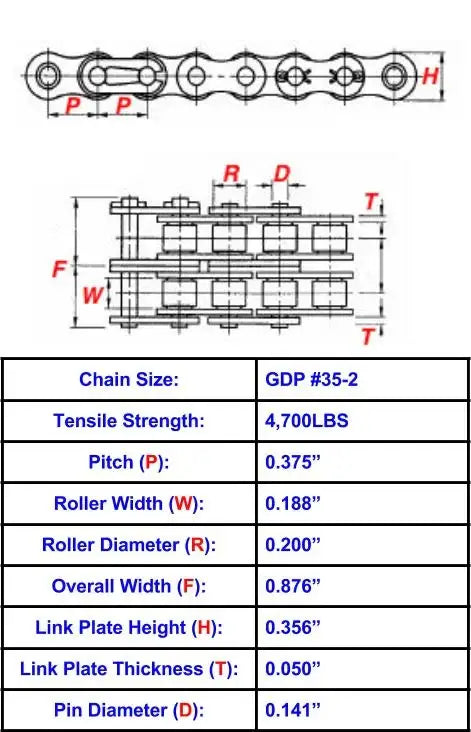

#35-2 Double Strand Roller Chain Dimensions
Chain Size: #35-2 Tensile Strength: 4,700lbs Pitch (P): 0.375" Roller Width (W): 0.188" Roller Diameter (R): 0.200" Overall Chain Width (F): 0.876" Link Plate Height (H): 0.356" Link Plate Thickness (T): 0.050" Pin Diameter (D): 0.141" Specifications Met: ANSI Standards
Chain Size: #35-2 Tensile Strength: 4,700lbs Pitch (P): 0.375" Roller Width (W): 0.188" Roller Diameter (R): 0.200" Overall Chain Width (F): 0.876" Link Plate Height (H): 0.356" Link Plate Thickness (T): 0.050" Pin Diameter (D): 0.141" Specifications Met: ANSI Standards
