General Duty Plus #140H Heavy Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

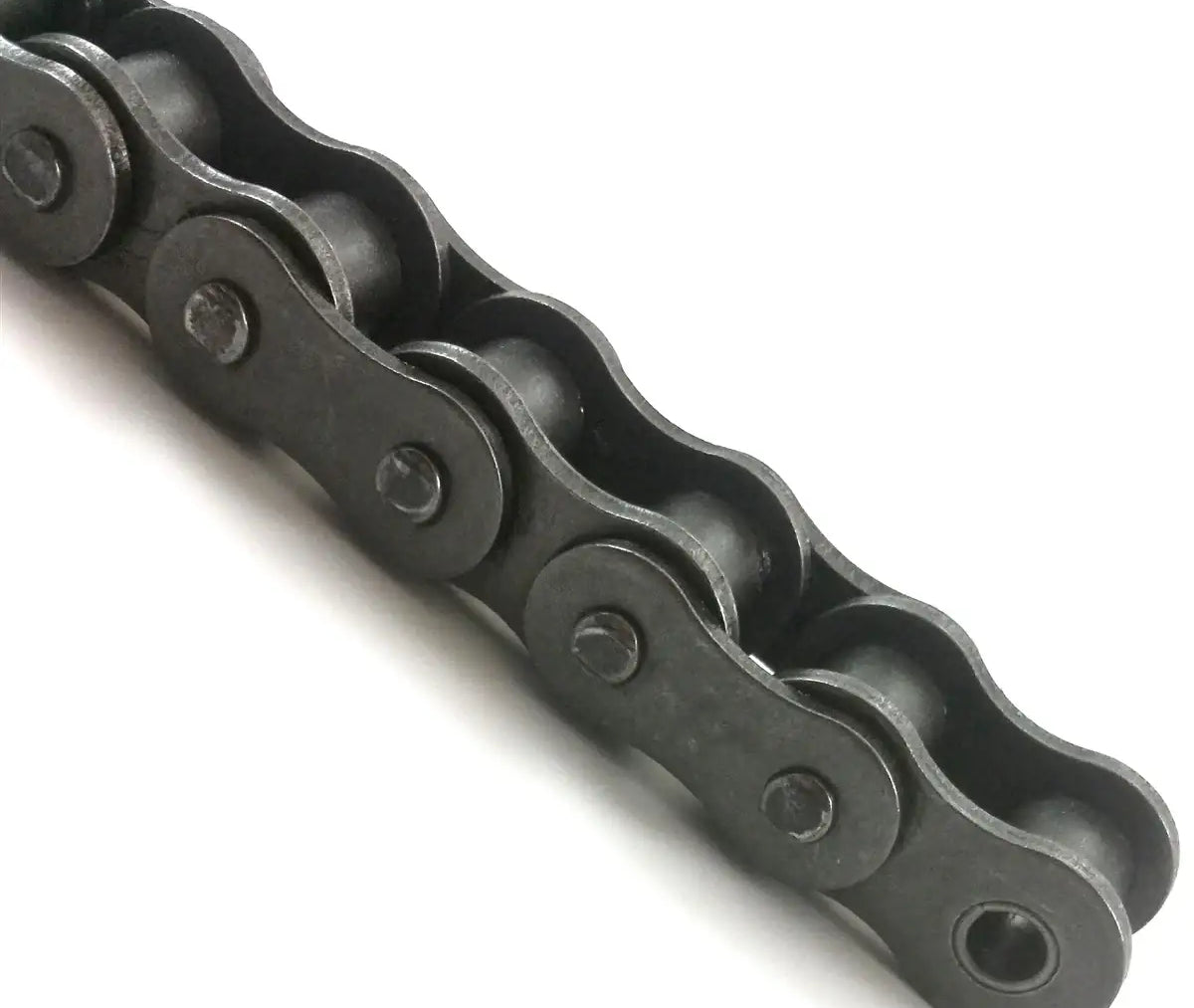

General Duty Plus #140H heavy roller chain is a high quality ANSI standard roller chain. This #140H roller chain features heat-treated and shot peened components including the pins, side plates, rollers, and bushings. Doing this to a roller chain greatly increases the strength, working life, and durability of a chain. The "H" designates that his chain has thicker side plates and is part of the heavy series of roller chains. Having thicker sides plate increases strength, shock load, fatigue, and the overall working life of the chain. General Duty Plus #140H roller chain has a tensile strength of 56,300lbs and is constructed of high quality carbon steel. #140H heavy roller chain is commonly supplied in 10ft boxes but custom lengths are available per request. USA Roller Chain and Sprockets also offers a full line of attachments for this chain and a full line of high quality sprockets! For more information or if you need a custom length please contact us.
#140H Heavy Roller Chain Dimensions
Chain Size: #140H Note: All Dimensions Are Given In Inches Tensile Strength: 56,300lbs Pitch (P): 1.750" Roller Width (W): 1.000" Roller Diameter (D): 1.000" Overall Chain Width (F): 2.276" Link Plate Height (H): 1.663" Link Plate Thickness (T): 0.250" Pin Diameter (E): 0.500" Specifications Met: ANSI Standards
Chain Size: #140H Note: All Dimensions Are Given In Inches Tensile Strength: 56,300lbs Pitch (P): 1.750" Roller Width (W): 1.000" Roller Diameter (D): 1.000" Overall Chain Width (F): 2.276" Link Plate Height (H): 1.663" Link Plate Thickness (T): 0.250" Pin Diameter (E): 0.500" Specifications Met: ANSI Standards
