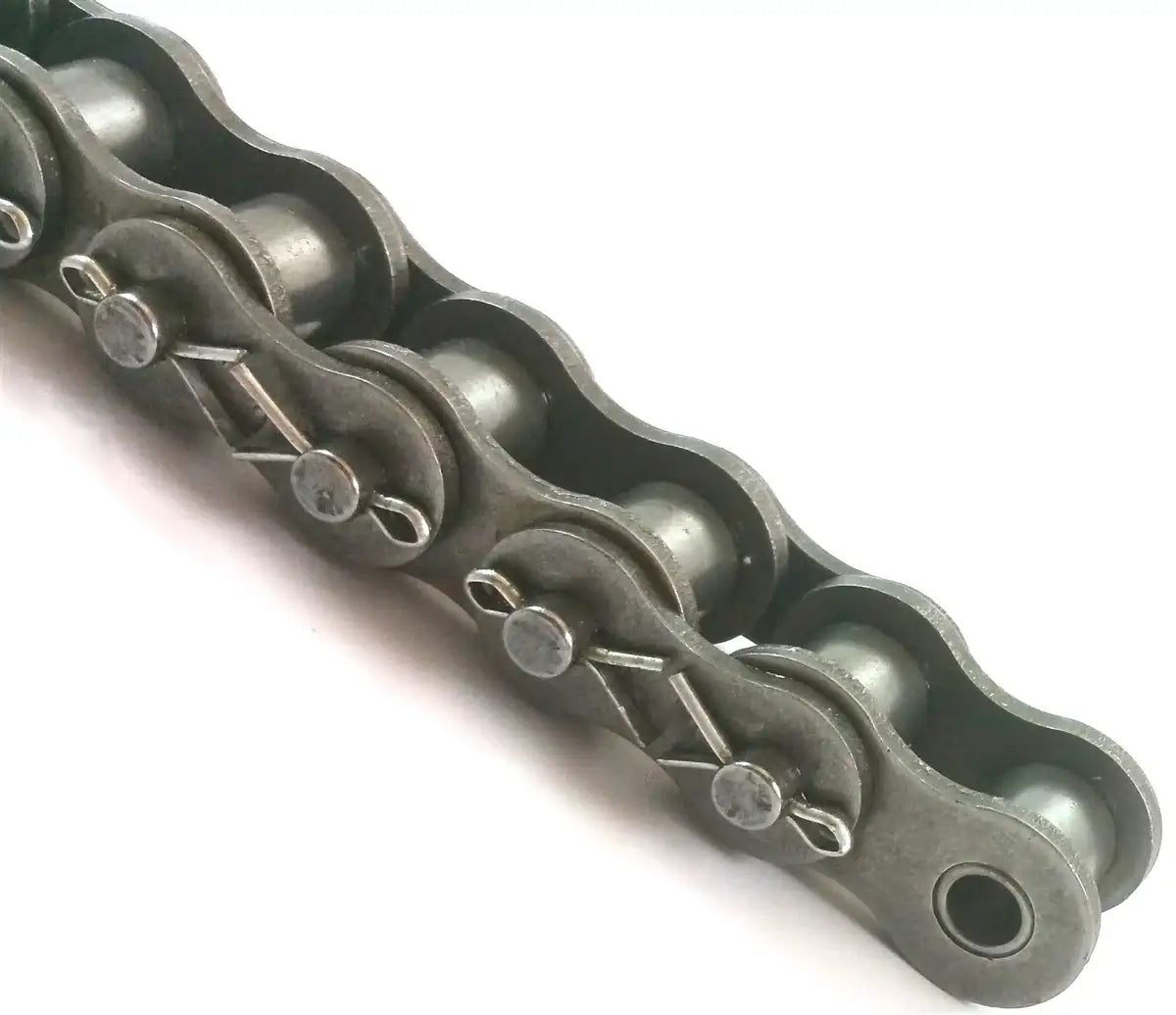

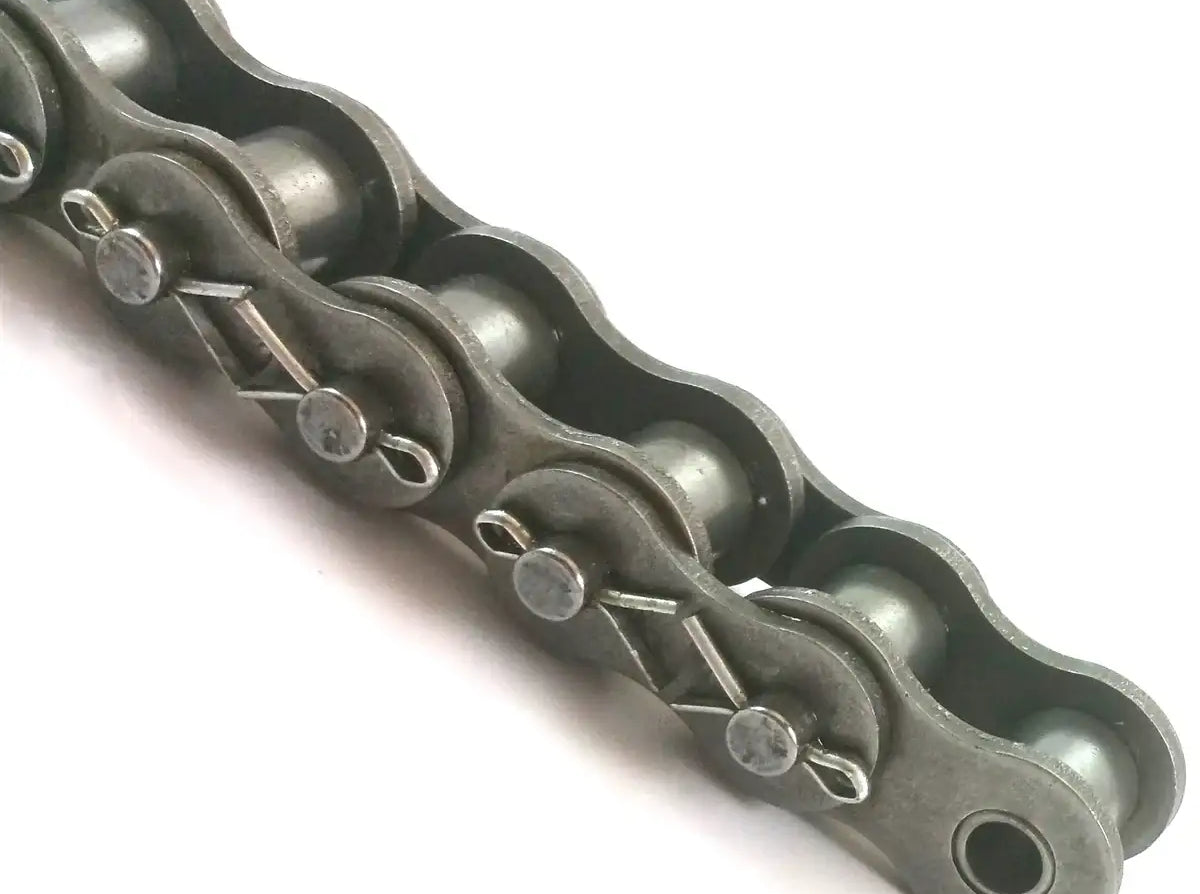

General Duty Plus #100 Cottered Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$299.99
SKU: GDP-100-COT-10FT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
General Duty Plus #100 Cottered Roller Chain - 10ft Box Features
General Duty Plus #100 Cottered Roller Chain - 10ft Box Specifications
This #100 cottered roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat treated components that drastically increase the chains strength, working life, and overall performance. This #100 cottered roller chain has a tensile strength of 26,000lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #100 cottered roller chain at alternate lengths per request. This chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation and keep you up and running. Another thing that extra connecting links and offset links are good for is making those miscellaneous repairs that need to be done to keep you in operation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #100 Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.

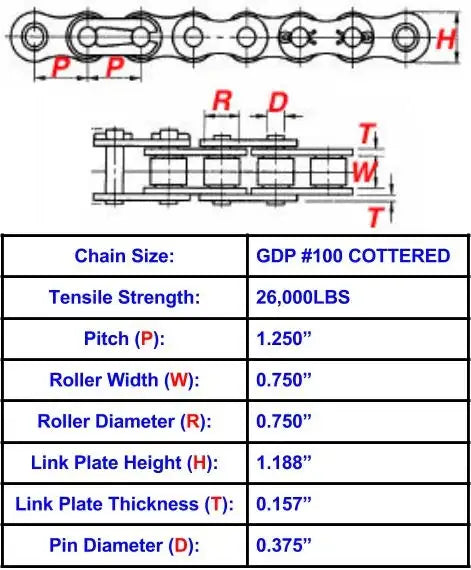

#100 Cottered Roller Chain Dimensions
- Chain Size: #100
- Tensile Strength: 26,000lbs
- Pitch (P): 1.250"
- Roller Width (W): 0.750"
- Roller Diameter (D): 0.750"
- Link Plate Height (H): 1.188"
- Link Plate Thickness (T): 0.157"
- Pin Diameter (E): 0.375"
- Specifications Met: ANSI Standards
- Chain Size: #100
- Tensile Strength: 26,000lbs
- Pitch (P): 1.250"
- Roller Width (W): 0.750"
- Roller Diameter (D): 0.750"
- Link Plate Height (H): 1.188"
- Link Plate Thickness (T): 0.157"
- Pin Diameter (E): 0.375"
- Specifications Met: ANSI Standards
