General Duty Plus #40 Nickel Plated Roller Chain - 10ft Box Features
General Duty Plus #40 Nickel Plated Roller Chain - 10ft Box Specifications

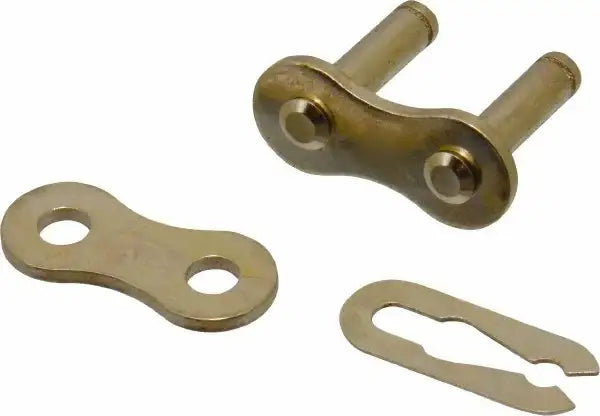

This #40 nickel plated roller chain is a durable, high quality, and high strength roller chain that fully meets all ANSI Standards. Nickel plated roller chain is good in humid or slightly corrosive environments where normal roller chain tends to rust easily. The General Duty Plus #40 nickel plated roller chain features heat treated parts that have been nickel plated evenly and fully which eliminates stress cracking, unwanted wear, and easy corrosion attack. Some of the advantages of the General Duty Plus Series nickel plated roller chain over the Economy Plus Series chain is that it uses a higher quality carbon steel, a better nickel plating, and features fully heat treated components. Doing these things to a roller chain drastically increases the strength, durability, working life, and overall performance of the chain. Additionally, this chain is just as strong as the standard General Duty Plus carbon steel roller chain and will work on the same sprockets. #40 nickel plated roller chain is commonly supplied in 10ft boxes including one connecting link in each box. However we can supply this chain on larger length reels and even custom lengths to meet your applications exact needs. We also offer nickel plated attachments and a full line of high quality ANSI #40 sprockets.

#40 Nickel Plated Chain Dimensions


General Duty Plus #40 Nickel Plated Roller Chain - 10ft Box
  • Part Number: #40NP
  • Tensile Strength: 4,100 LBS
  • Pitch (P): 0.500"
  • Roller Width (W): 0.312"
  • Roller Diameter (D): 0.312"
  • Chain Overall Width (F): 0.640"
  • Overall Width Of Connecting Link: 0.690"
  • Link Plate Height (H): 0.475"
  • Link Plate Thickness (T): 0.058"
  • Pin Diameter (E): 0.156"
  • Weight Per Foot: 0.42 LBS
  • Part Number: #40NP
  • Tensile Strength: 4,100 LBS
  • Pitch (P): 0.500"
  • Roller Width (W): 0.312"
  • Roller Diameter (D): 0.312"
  • Chain Overall Width (F): 0.640"
  • Overall Width Of Connecting Link: 0.690"
  • Link Plate Height (H): 0.475"
  • Link Plate Thickness (T): 0.058"
  • Pin Diameter (E): 0.156"
  • Weight Per Foot: 0.42 LBS
