FV315-315 A2 Attachment

FV315-315 A2 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: FV315-315-A2-ATTACHMENT
Shipping calculated at checkout.
View full details
Description
Specification
FV315-315 A2 attachment is a two hole, one side FV series conveyor chain attachment. We supply FV chain with this attachment in any configuration/ spacing required. To get a quote or for more information on the FV315-315 A2 attachment contact our customer support team and we will be happy to assist you.

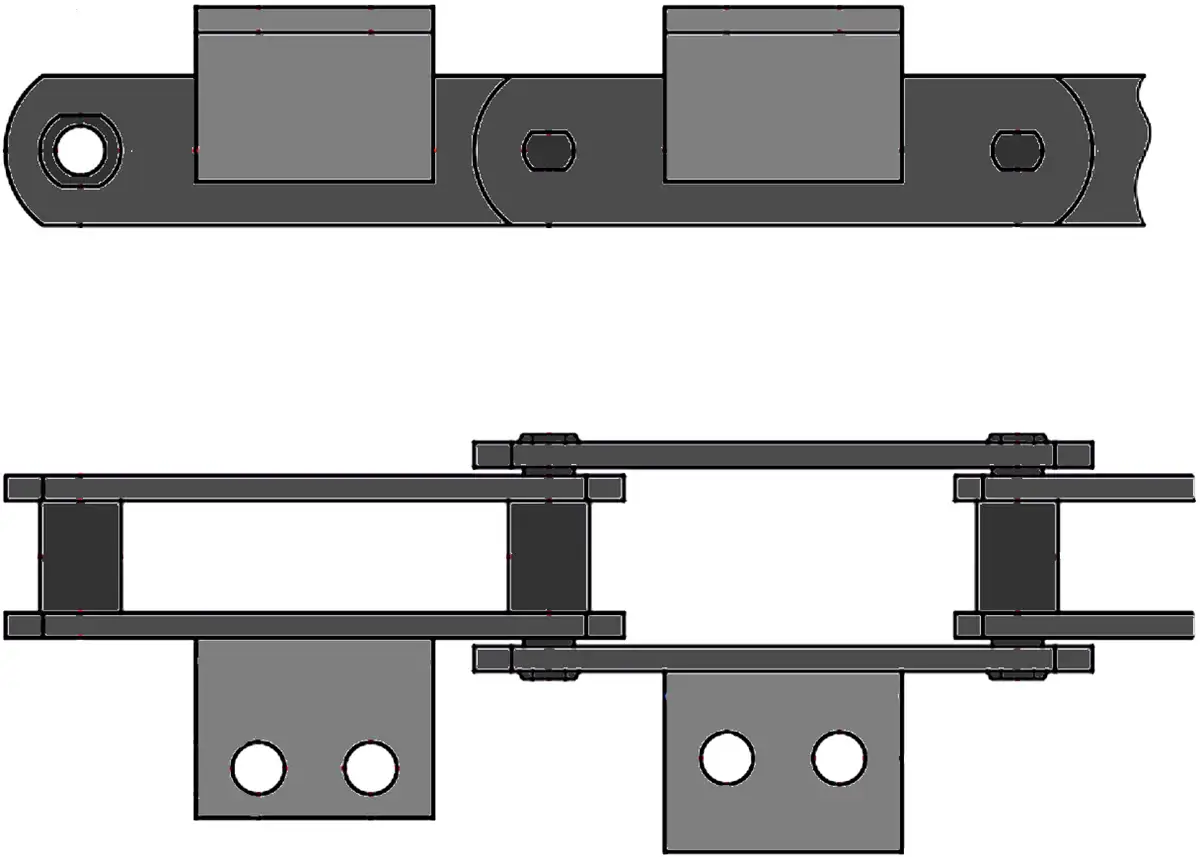

FV315-315 A2 Attachment Dimensions

FV315-315 A2 Attachment
  • Attachment Size: FV315-250-A2
  • Pitch (P): 315mm
  • Dimension (A): 85mm
  • Dimension (B): 60mm
  • Bolt Hole (D): 14mm
  • Angle (S): 70X10
  • Dimension (E): 130mm
  • Dimension (F): 100mm
  • Dimension (C): 95mm
  • Attachment Weight: 1.130kG

Feature

  • High-Quality Metric Conveyor Chain Attachment
  • Made to Specific DIN Standards
  • Can Be Supplied Onto Chain in Any Configuration Needed
  • Premium Grade Steel
  • Precision Manufactured
Featured image
  • Attachment Size: FV315-250-A2
  • Pitch (P): 315mm
  • Dimension (A): 85mm
  • Dimension (B): 60mm
  • Bolt Hole (D): 14mm
  • Angle (S): 70X10
  • Dimension (E): 130mm
  • Dimension (F): 100mm
  • Dimension (C): 95mm
  • Attachment Weight: 1.130kG
