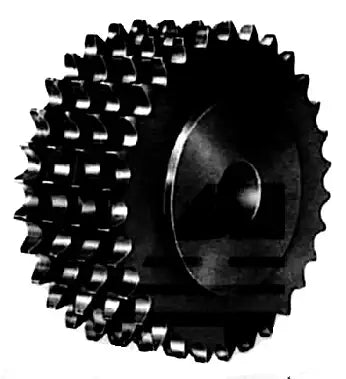

F200B24 Sprocket | Four Strand F200B24 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: F200B24-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
F200B24 Sprocket | Four Strand F200B24 Sprocket Features
F200B24 Sprocket | Four Strand F200B24 Sprocket Specifications
F200B24 Sprocket is a four-strand B-Hub roller chain sprocket with 24 teeth and a stock bore. Our quad strand F200B24 sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. Besides the sprocket, we also stock 200-4 roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
F200B24 Sprocket Dimensions
- Sprocket Size: F200B24
- Tooth Count: 24
- Outside Diameter (O.D.): 20.490"
- Sprocket Type: B
- Stock Bore: 2-3/16"
- Maximum Recommended Bore: 6-11/16"
- Hub Diameter (HD): 9-3/4"
- Length Thru Bore (LTB): 10-3/4"
- Sprocket Weight: 702.0 LBS
- Sprocket Size: F200B24
- Tooth Count: 24
- Outside Diameter (O.D.): 20.490"
- Sprocket Type: B
- Stock Bore: 2-3/16"
- Maximum Recommended Bore: 6-11/16"
- Hub Diameter (HD): 9-3/4"
- Length Thru Bore (LTB): 10-3/4"
- Sprocket Weight: 702.0 LBS
