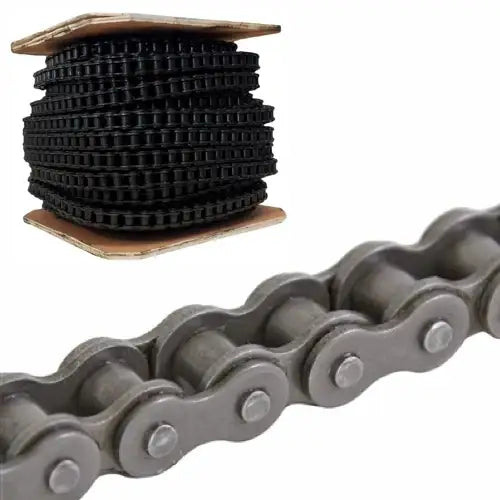

Economy Plus #50 Roller Chain - 50ft Reel
Note:
Custom Cut To Length Chain Also Available
SKU: ECONOMY-50RC-50FT-REEL
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Economy Plus #50 Roller Chain - 50ft Reel Description/Features
50ft reels of #50 chain are typically used for applications that require a long continuous length of chain or when smaller lengths are required and using long lengths reduce drop. Economy Plus #50 roller chain is dimensionally manufactured to ANSI B29.1 Standards. This means that it will directly interchange with other ANSI certified roller chains and will operate properly on #50 chain sprockets. All Economy Plus series roller chains are manufactured using heat-treated precision components and are supplied pre-lubricated from the factory.
Economy Plus #50 Roller Chain Dimensions
- Pitch (P): 0.625"
- Roller Width (W): 0.375"
- Roller Diameter (D): 0.400"
- Overall Width (A): 0.800"
- Plate Height (H): 0.591"
- Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Tensile Strength: 6,100 LBS
- Weight Per Foot: 0.713 LBS
