C2102H Roller Chain - 10ft Box
SKU: ECO-C2102H-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

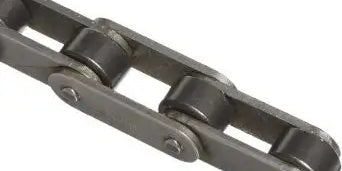

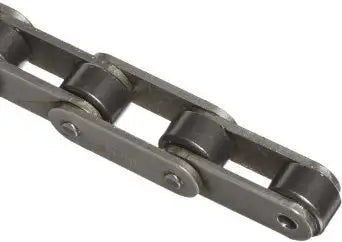

C2102H Roller Chain - 10ft Box Description/Features
C2102H Roller Chain - 10ft Box Specifications
Economy Plus C2102H roller chain is manufactured to ANSI Specifications and is a good quality roller chain. This chain features oversized rollers making it good for a wide range of conveying, drive, and carry applications. C2102H roller chain is typically supplied as 10ft boxes including one connecting link per box, be alternate lengths are available upon request. In addition to plain C2102H chain we also offer a full line of attachment and C2102H sprockets! Fore more information or to get a quote on sprockets or attachment chain please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer "Here"!
- Chain Size: C2102H
- Pitch (P): 2.500"
- Roller Width (W): 0.750"
- Roller Diameter (R): 1.562"
- Plate Height (H): 1.121"
- Plate Thickness (T): 0.187"
- Pin Diameter (D): 0.375"
- Chain Width (F): 1.666"
- Connecting Link Width (G): 1.830"
- Tensile Strength: 25,150 LBS
- Weight: 3.896 LBS/ FT
Email:
See What All We Offer "Here"!
- Chain Size: C2102H
- Pitch (P): 2.500"
- Roller Width (W): 0.750"
- Roller Diameter (R): 1.562"
- Plate Height (H): 1.121"
- Plate Thickness (T): 0.187"
- Pin Diameter (D): 0.375"
- Chain Width (F): 1.666"
- Connecting Link Width (G): 1.830"
- Tensile Strength: 25,150 LBS
- Weight: 3.896 LBS/ FT
