C2100H Roller Chain - 10ft Box
SKU: ECO-C2100H-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
C2100H Roller Chain - 10ft Box Description/Features
C2100H Roller Chain - 10ft Box Specifications

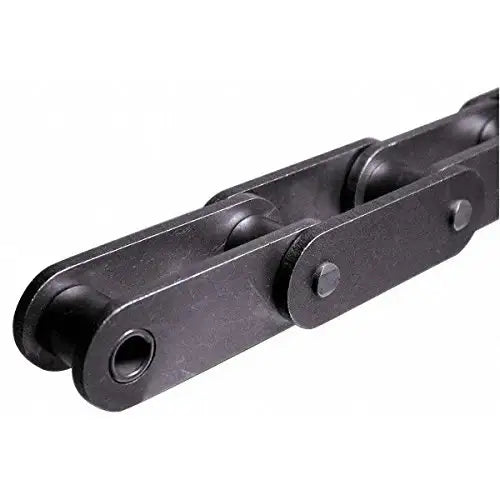

C2100H Roller Chain is Also Commonly Known As C2100H Double Pitch Roller Chain and C2100H Conveyor Chain. This C2100H Roller Chain fully meets all ANSI Standards and is a durable and dependable product. Economy Plus C2100H double pitch roller chain has a tensile strength of 28,000lbs and is supplied in 10ft boxes including one connecting link, but alternate lengths are available per request. We also offer additional connecting links and offset links, along with a full line of C2100H sprockets and attachments. For more information about C2100H roller chain or to get a quote on sprockets, or attachments give us a call!
When looking for C2100H conveyor chain (photo below on the left) it is important to not mix it up with C2102H roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2100H".
VS.
Phone: (407) 347-3519
Email:sales@usarollerchain.com
C2100H Roller Chain Dimensions
- Pitch (P): 2.500"
- Roller Width (W): 0.750"
- Roller Diameter (R): 0.750"
- Plate Height (H): 1.121"
- Plate Thickness (T): 0.187"
- Pin Diameter (D): 0.375"
- Overall Width (F): 1.666"
- Tensile Strength: 28,000lbs
- Weight: 2.42 lbs/ft
When looking for C2100H conveyor chain (photo below on the left) it is important to not mix it up with C2102H roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2100H".
VS.Phone: (407) 347-3519
Email:
- Pitch (P): 2.500"
- Roller Width (W): 0.750"
- Roller Diameter (R): 0.750"
- Plate Height (H): 1.121"
- Plate Thickness (T): 0.187"
- Pin Diameter (D): 0.375"
- Overall Width (F): 1.666"
- Tensile Strength: 28,000lbs
- Weight: 2.42 lbs/ft
