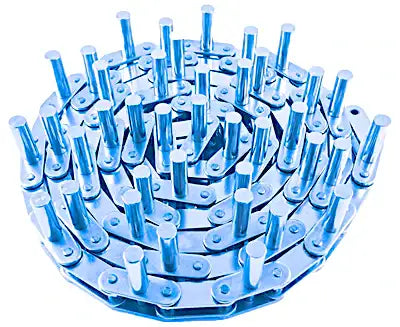

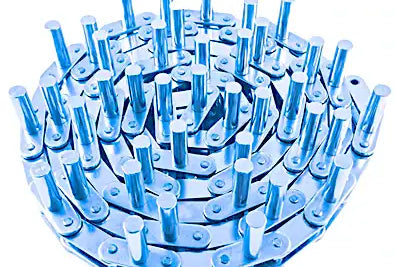

Coated Citrus Chain | C2060H W/ 1/2" X 1-5/8" D-5 Ev 2nd - 10FT

The coated citrus chain provides optimal corrosion resistance at a lower price than that of stainless steel. Coated citrus chain is a C2060H double-pitch chain with a 1/2" X 1-5/8" D-5 extended pin every pin link (outside link); it is utilized in citrus and produce packaging facilities around the world! Coating a citrus chain involves taking each part individually, coating it with a baking procedure, and then assembling the chain. Coating a citrus chain before assembly ensures no cracks between components that can cause premature corrosion. Each component that makes up our 1/2" D-5 coated citrus chain undergoes specific processes to the raw carbon steel for improved wear life, durability, and performance. We also supply this chain with a solid roller design, further improving the wear life of the chain and sprocket! At USA Roller Chain, we pride ourselves in providing top-notch industrial power transmission products; our coated citrus chain with 1/2" diameter D-5 extended pins is no exception. Combining our years of experience being right in the heart of the citrus packing house industry and manufacturers' experience with making chains, our coated citrus chains are made to perform! For additional information or to get a quote on coated citrus chains, contact our customer support team, and we will be happy to assist you!

1/2" X 1-5/8" D-5 Coated Citrus Chain Dimensions

• Part #: C2060HCOAT-D5-EV2-12
• Pitch (P): 1.500"
• Roller Width (R): 0.495"
• Roller Diameter (D): 0.469"
• Overall Width (W): 1.189"
• Connecting Link Width Without Pin (X): 1.354"
• Plate Height (H): 0.707"
• Pin Diameter (L): 0.234"
• D-5 Pin Projection (K): 1.625"
• D-5 Pin diameter (V): 0.500"
• Weight: 1.20 LBS/ FT
• For 9/16" Diameter D-5 Attachment Click Here

Coated Citrus Chain Corrosion Resistance

From an anti-corrosion point of view, coated citrus roller chains are an excellent choice! Below is a salt-spray test conducted for 250 hours on coated and nickel-plated chains. As you can see, the coated roller chain only shows slight signs of corrosion at 250 hours, while the nickel-plated chain shows significant corrosion at only 150 hours. Something important to keep in mind is that coated chains are still not as corrosion-resistant as stainless steel; once the coating wears off, the bare carbon steel will begin to rust.
Nickel Plated Chain at 150 Hours of Salt Spray:

Coated Chain at 250 Hours of Salt Spray:

Other Citrus Products

Roller End Caps	Roller Gromits	Brushes	Washer Sprockets
Roller end caps are also commonly known as roller end bearings; they are typically used with 2" schedule 40 PVC, 2" EMT, and 2-1/4" OD tubing with a 0.83" sidewall.	The roller grommets are the grey "spacers" in the above GIF image. They create a larger pocket for when larger produce is being run.	Brushes are used for cleaning the citrus and produce. We supply a wide range of industrial brushes in a multitude of colors.	Washer sprockets are 60B11 sprockets with a unique hub. Our washer sprockets are made from 1045 steel and have hardened teeth with an anti-corrosive black oxide coating.
