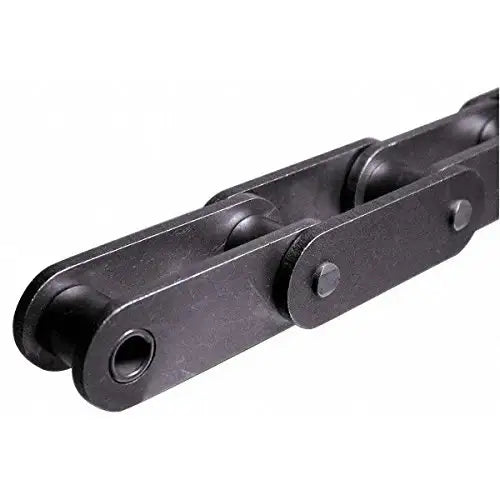

C2050 Roller Chain - 10ft Box
$54.99
SKU: ECO-C2050-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
C2050 Roller Chain - 10ft Box Description/Features
C2050 Roller Chain - 10ft Box Specifications
Pitch (P): 1.250" Roller Width (W): 0.375" Roller Diameter (R): 0.400" Plate Height (H): 0.593" Plate Thickness (T): 0.080" Pin Diameter (D): 0.200" Overall Width (F): 0.806" Tensile Strength: 6,600lbs Weight: 0.56 lbs/ft
When looking for C2050 roller chain (photo below on the left) it is important, not to mix it up with
VS.
C2050 Roller Chain Sprockets
We also have a full line of premium quality C2050 roller chain sprockets. Refer to the below chart for the stock C2050 double pitch roller chain sizes. It's best to use special double pitch roller chain sprockets when a sprocket is under 30-teeth with double pitch chains so that the chain properly seats in the sprocket, failure of this often results in unnecessary chain and sprocket wear.|
|
Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|
| 24 | 5.120" | 23/32" | -- | -- | 1.58 LBS | |
| 25 | 5.320" | 23/32" | -- | -- | 1.68 LBS | |
| 26 | 5.223" | 23/32" | -- | -- | 1.88 LBS | |
| 28 | 5.920" | 23/32" | -- | -- | 2.22 LBS | |
| 30 | 6.320" | 23/32" | -- | -- | 2.54 LBS | |
| 11 | 2.500" | 5/8" | 13/16" | 1" | 0.62 LBS | |
| 12 | 2.710" | 5/8" | 1" | 1" | 0.80 LBS | |
| 13 | 2.910" | 5/8" | 1-7/32" | 1" | 0.82 LBS | |
| 14 | 3.110" | 5/8" | 1-9/32" | 1" | 1.00 LBS | |
| 15 | 3.320" | 5/8" | 1-13/32" | 1" | 1.22 LBS | |
| 16 | 3.520" | 5/8" | 1-13/32" | 1" | 1.44 LBS | |
| 17 | 3.720" | 5/8" | 1-3/4" | 1" | 1.68 LBS | |
| 18 | 3.920" | 5/8" | 1-25/32" | 1" | 1.94 LBS | |
| 19 | 4.120" | 5/8" | 1-31/32" | 1" | 2.24 LBS | |
| 20 | 4.320" | 3/4" | 2" | 1" | 2.30 LBS | |
| 21 | 4.520" | 3/4" | 2" | 1" | 2.40 LBS | |
| 22 | 4.720" | 3/4" | 2" | 1" | 2.54 LBS | |
| 23 | 4.920" |
3/4" | 2" | 1" | 2.66 LBS | |
| 24 | 5.120" | 3/4" | 2" | 1-1/4" | 3.30 LBS | |
| 25 | 5.320" | 3/4" | 2" | 1-1/4" | 3.42 LBS | |
| 26 | 5.520" | 3/4" | 2" | 1-1/4" | 3.62 LBS | |
| 28 | 5.920" | 3/4" | 2" | 1-1/4" | 3.78 LBS | |
| 30 | 6.320" | 3/4" | 2-1/4" | 1-1/4" | 4.58 LBS |
C2050 Roller Chain Attachments
We can also supply C2050 attachment links or complete assembled attachment strands. Our stock C2050 attachments include A-1, A-2, K-1, K-2, SA-1, SA-2, SK-1, SK-2, D-1, and D-3 types. We stock attachments in standard carbon steel, stainless steel, nickel pated, and coated configurations. To request a quote on attachment C2050 chain simply give us a call or visit our roller chain attachments section and fill out the request form.
Email:
Pitch (P): 0.250" Roller Width (W): 0.375" Roller Diameter (R): 0.400" Plate Height (H): 0.593" Plate Thickness (T): 0.080" Pin Diameter (D): 0.200" Overall Width (F): 0.806" Tensile Strength: 6,600lbs Weight: 0.56 lbs/ft
