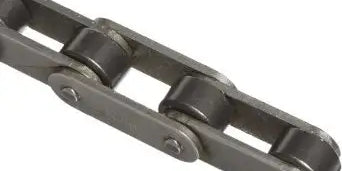

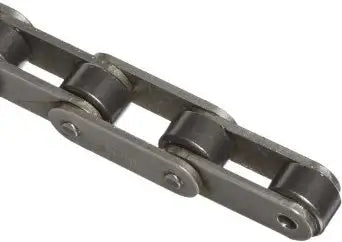

C2042 Roller Chain 10ft Box
Note:
Custom Cut to Length Chain Also Available
SKU: ECO-C2042-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
C2042 Roller Chain 10ft Box Features
C2042 Roller Chain 10ft Box Specifications
This C2042 chain is manufactured in accordance to ANSI B29.1 standards dimensionally. Basically meaning that it will directly interchange with a multitude of brands and manufactures. What sets this economically priced chain apart from others is the use of heat-treated and shot peened components which drastically increase the strength and overall durability of the chain. It is also factory pre-stretched which means lower elongation over the life of the chain, additionally, all of our ANSI roller chains are shipped with a high-quality lubricant. Other common industry terms for C2042 roller chain are; C2042 conveyor chain or C2042 oversized roller chain. This is due to the large rollers that extend past the side plates on the chain.
As you can see above the implementation of oversized rollers makes it to where the chain can smoothly and productively roll or convey on top of a surface. The main benefit of this feature is that it can turn complex conveying jobs and applications int simplified ones.
Phone: (407) 347-3519
Email:sales@usarollerchain.com
See What All We Offer "Here"!
C2042 Chain Operation
As you can see above the implementation of oversized rollers makes it to where the chain can smoothly and productively roll or convey on top of a surface. The main benefit of this feature is that it can turn complex conveying jobs and applications int simplified ones.
C2042 Chain Dimensions
- Chain Size: C2042
- Pitch (P): 1.000"
- Roller Width (W): 0.312"
- Roller Diameter (R): 0.625"
- Plate Height (H): 0.463"
- Plate Thickness (T): 0.060"
- Pin Diameter (D): 0.156"
- Chain Width (F): 0.640"
- Connecting Link Width (G): 0.754"
- Tensile Strength: 3,690 LBS
- Weight: 0.577 LBS/ FT
C2042 Conveyor Chain Maintenance
Because of the simplistic design and operation of this chain, a common misconception is a need to maintain this chain. For proper maintenance on C2042 roller chains, you want to keep consistent chain lubricant applied as well as tension. Additionally, for an increased working life we recommend using a roller chain guide, also known as a wear strip.C2042 Roller Chain Sprockets
We also stock a full line of premium quality C2042 sprockets, as well as roller chain attachments. Another important part of maintaining a chain is making sure your sprockets are in good shape and aligned. All of out sprockets that have 30-teeth or less use hardened teeth for extended working life.| Sprocket Size | Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|
| 2042B8 | 8 | 3.010" | 5/8" | 1-9/32" | 7/8" | 0.72 LBS |
| 2042B9 | 9 | 3.350" | 5/8" | 1-15/32" | 7/8" | 1.02 LBS |
| 2042B10 | 10 | 3.680" | 5/8" | 1-3/4" | 1" | 1.50 LBS |
| 2042B11 | 11 | 4.000" | 5/8" | 1-7/8" | 1" | 1.68 LBS |
| 2042B12 | 12 | 4.330" | 5/8" | 2-1/4" | 1" | 2.22 LBS |
| 2042B13 | 13 | 4.660" | 5/8" | 2-1/4" | 1" | 2.56 LBS |
| 2042B14 | 14 | 4.980" | 5/8" | 2-1/4" | 1" | 2.72 LBS |
| 2042B15 | 15 | 5.300" | 5/8" | 2-1/4" | 1" | 2.90 LBS |
| 2042B16 | 16 | 5.630" | 5/8" | 2-1/4" | 1" | 3.10 LBS |
| 2042B17 | 17 | 5.950" | 5/8" | 2-1/4" | 1" | 3.40 LBS |
| 2042B18 | 18 | 6.270" | 5/8" | 2-1/4" | 1" | 3.56 LBS |
| 2042B19 | 19 | 6.590" | 5/8" | 2-1/4" | 1" | 3.72 LBS |
| 2042B20 | 20 | 6.910" | 3/4" | 2-3/8" | 1-1/8" | 4.72 LBS |
| 2042B21 | 21 | 7.240" | 3/4" | 2-3/8" | 1-1/8" | 4.84 LBS |
| 2042B22 | 22 | 7.560" | 3/4" | 2-3/8" | 1-1/8" | 5.18 LBS |
| 2042B23 | 23 | 7.880" | 3/4" | 2-3/8" | 1-1/8" | 5.04 LBS |
| 2042B24 | 24 | 8.200" | 3/4" | 2-3/8" | 1-1/8" | 5.58 LBS |
| 2042B25 | 25 | 8.520" | 3/4" | 2-3/8" | 1-1/8" | 5.96 LBS |
| 2042B26 | 26 | 8.840" | 3/4" | 2-3/8" | 1-1/8" | 6.22 LBS |
| 2042B28 | 28 | 9.480" | 3/4" | 2-3/8" | 1-1/8" | 6.78 LBS |
| 2042B30 | 30 | 10.110" | 3/4" | 2-3/8" | 1-1/8" | 7.56 LBS |
Phone: (407) 347-3519
Email:
See What All We Offer "Here"!
- Chain Size: C2042
- Pitch (P): 1.000"
- Roller Width (W): 0.312"
- Roller Diameter (R): 0.625"
- Plate Height (H): 0.463"
- Plate Thickness (T): 0.060"
- Pin Diameter (D): 0.156"
- Chain Width (F): 0.640"
- Connecting Link Width (G): 0.754"
- Tensile Strength: 3,690 LBS
- Weight: 0.577 LBS/ FT
