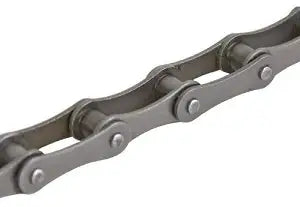

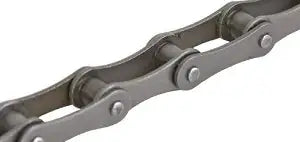

Economy Plus A2060 Roller Chain - 10ft Box

Name: Economy Plus A2060 Roller Chain - 10ft Box
Brand: USA ROLLER CHAIN
SKU: ECO-A2060-ROLLER-CHAIN
Availability: InStock

SKU: ECO-A2060-ROLLER-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

Economy Plus A2060 Roller Chain - 10ft Box Description/Features

Economy Plus A2060 Roller Chain - 10ft Box Specifications

Economy Plus A2060 roller chain is manufactured to ANSI Specifications and is a good quality roller chain. This chain is also commonly referred to as A2060 agricultural roller chain due to its heavy usage in the agriculture industry but is used in a very wide range of other applications too. A2060 roller chain is typically supplied as 10ft boxes including one connecting link per box, be alternate lengths are available upon request. Additionally we offer a full line of high-quality A2060 chain sprockets right off the shelf! Fore more information or to get a quote on sprockets please contact us and we will be happy to assist you.

Dimensions:

Chain Size: A2060
Pitch (P): 1.500"
Roller Width (W): 0.500"
Roller Diameter (R): 0.469"
Plate Height (H): 0.683"
Plate Thickness (T): 0.094"
Pin Diameter (D): 0.234"
Chain Width (F): 1.000"
Connecting Link Width (G): 1.049"
Tensile Strength: 8,200 LBS
Weight: 0.70 LBS/ FT
