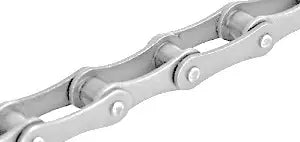

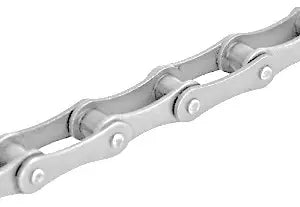

A2040 High-Performance SS Roller Chain
SKU: ECO-A2040-SS-10FT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
A2040 High-Performance SS Roller Chain Description/Features
A2040 High-Performance SS Roller Chain Specifications
This A2040 Stainless Steel Roller Chain fully meets all ANSI standards and is a durable, corrosion resistant, stainless steel roller chain. Economy Plus A2040 stainless steel roller chain has a tensile strength of 2,670lbs and is constructed entirely out of 304-grade stainless steel. Making a roller chain using 304-Grade Stainless Steel creates a stainless steel roller chain that is high strength, resistant to chemical attack, and highly resistant to corrosion. This A2040 stainless steel roller chain can run in temperatures ranging from -200� up to 700� Degrees Fahrenheit, (these temperatures may vary based on application). A2040 Stainless Steel roller chain is commonly supplied as 10ft boxes, and 50ft reels, we can also supply the chain as alternate lengths per request. Each 10ft box will come with one connecting link, and we offer additional connecting links and offset links if needed. We also offer a full line of A2040 Stainless Steel Sprockets and attachments. For additional information on A2040 stainless steel roller chain, or to get a quote for special lengths, or attachments, or sprockets, please contact us and we will be happy to assist you.

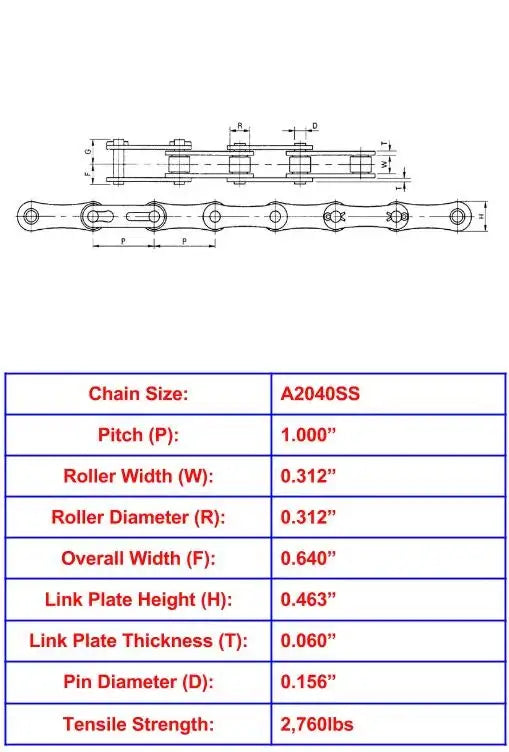

- Chain Size: A2040SS
- Tensile Strength: 2,760lbs
- Pitch (P): 1.000"
- Roller Width (W): 0.312"
- Roller Diameter (R): 0.312"
- Overall Chain Width (F): 0.640"
- Link Plate Height (H): 0.463"
- Link Plate Thickness (T): 0.060"
- Pin Diameter (D): 0.156"
- Specifications Met: ANSI Standards
