#80 Stainless Steel Roller Chain - 10ft Box
#80 Stainless Steel Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
Product Code: ECO-80SS-10FT
Shipping calculated at checkout.
Couldn't load pickup availability
This #80 Stainless Steel Roller Chain fully meets all ANSI standards and is a durable, corrosion resistant, stainless steel roller chain. Economy Plus #80 stainless steel roller chain has a tensile strength of 10,590lbs and is constructed entirely out of 304-grade stainless steel. Making a roller chain using 304-Grade Stainless Steel creates a stainless steel roller chain that is high strength, resistant to chemical attack, and highly resistant to corrosion. This #80 stainless steel roller chain can run in temperatures ranging from -200° - 700° Degrees Fahrenheit, (these temperatures may vary based on application). #80 Stainless Steel roller chain is supplied as 10ft boxes, each 10ft box will come with one connecting link, and we offer additional connecting links and offset links if needed. We also offer a full line of #80 Stainless Steel Sprockets and attachments. For additional information on #80 stainless steel roller chain, or to get a quote for special lengths, or attachments, or sprockets, please contact us and we will be happy to assist you.

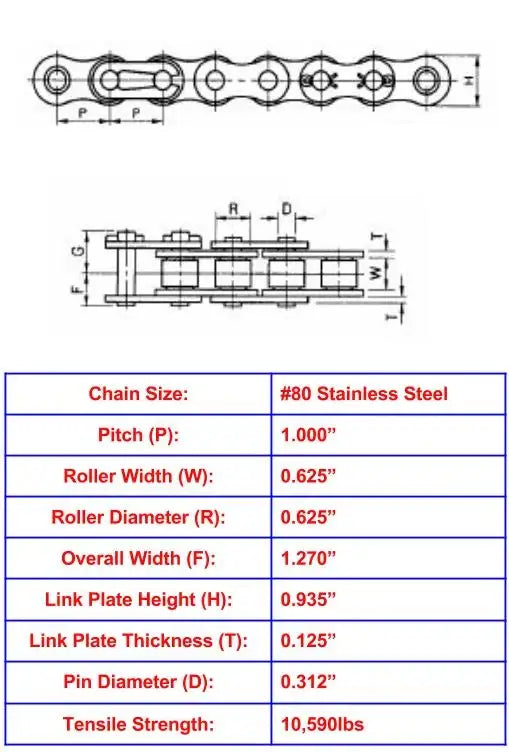

Dimensions:
Dimensions:
- Chain Size: #80SS
- Tensile Strength: 10,590lbs
- Pitch (P): 1.000"
- Roller Width (W): 0.625"
- Roller Diameter (D): 0.625"
- Overall Chain Width (F): 1.270"
- Link Plate Height (H): 0.935"
- Link Plate Thickness (T): 0.125"
- Pin Diameter (E): 0.312"
- Specifications Met: ANSI Standards
Feature
- Size: #80SS Stainless Steel Roller Chain
- Constructed of 304 Grade Stainless Steel
- Tensile Strength: 10,590lbs
- Extreme Resistance to Corrosion
- Will Operate in low & High Temperature Applications
- One Connecting Link Included per 10ft Box
- Fully Meets All ANSI Standards
- Chain Size: #80SS
- Tensile Strength: 10,590lbs
- Pitch (P): 1.000"
- Roller Width (W): 0.625"
- Roller Diameter (D): 0.625"
- Overall Chain Width (F): 1.270"
- Link Plate Height (H): 0.935"
- Link Plate Thickness (T): 0.125"
- Pin Diameter (E): 0.312"
- Specifications Met: ANSI Standards
