#80 Side Bow Roller Chain - 10FT Box

#80 Side Bow Roller Chain - 10FT Box

Note: Custom Cut to Length Chain Also Available
Product Code: ECO-80SB-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

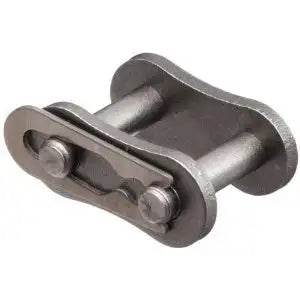

Economy Plus #80SB Side Bow Connecting Link / Master Link
Economy Plus #80SB Side Bow Connecting Link / Master Link
Login
View full details
Description
Specification
  • #80 side bow roller chain has extra clearance between pins, bushings, and side plates that will allow for its flexibility around curves or in twists. This #80 side bow roller chain has been heat treated to increase the fatigue and working life of the chain. #80 Side bow roller chain is commonly found in bottling applications, conveyor system applications, food processing applications, packaging applications, and a wide range of other applications. For more information on side bow roller chain please contact us.

    • Feature

    • Size: #80 Side Bow Roller Chain
    • Good Quality
    • Tensile Strength: 9,442lbs
    • Constructed of Hardened Steel For Increased Strength & Performance
    • Side Bow Roller Chain
    • Supplied as a 10ft Box Including One Connecting Link
    Featured image

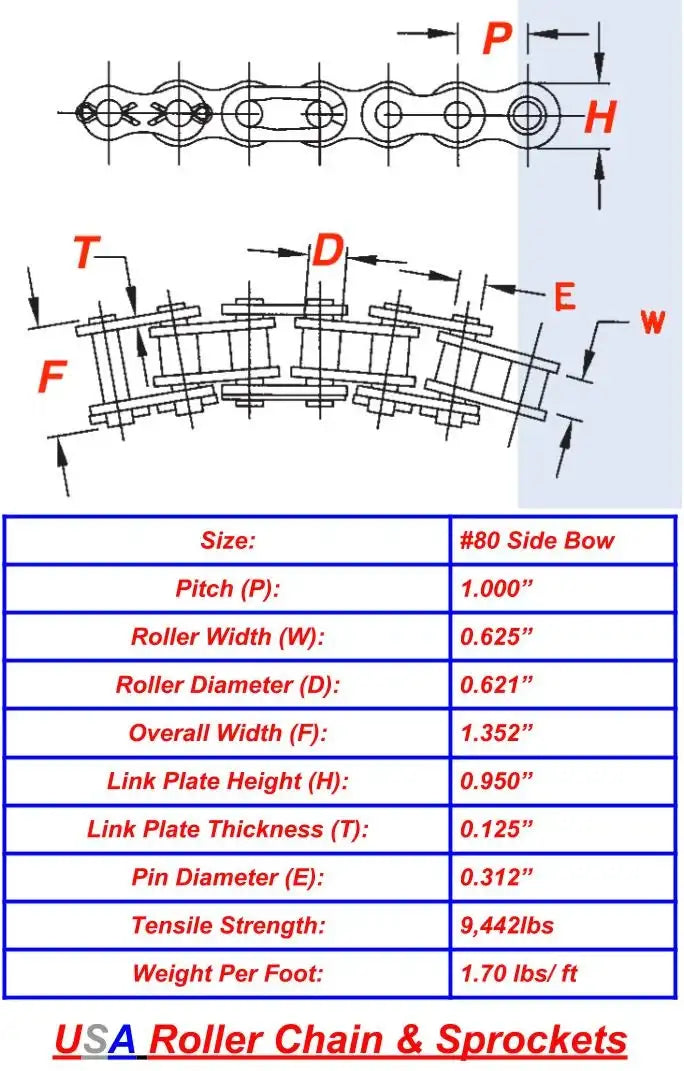

    • Size: #80 Side Bow Roller Chain
    • **Note: All Dimensions Are in Inches**
    • Pitch (P): 1.000
    • Roller Width (W): 0.625
    • Roller Diameter (D): 0.621
    • Overall Width (F): 1.352
    • Link Plate Height (H): 0.950
    • Link Plate Thickness (T): 0.125
    • Pin Diameter (E): 0.312
    • Tensile Strength: 9,442lbs
